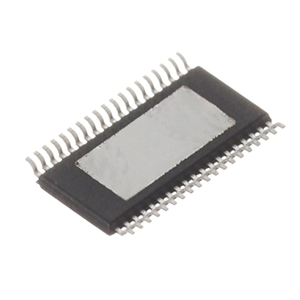

The MAX22208AUU offers four independently controlled 65V, 3.8AMAX H half-bridge drivers. It can drive four solenids, two brushed DC motors, a stepper motor, or a combination of different loads.

The MAX22208AUU's power supply FETs have a very low impedance and, as a result, drive efficiency is high and heat dissipation is minimal. The typical value of total RON (high + low end) is 0.3Ω (typical value). Each half-bridge can be individually controlled by pulse width modulation (PWM) using two logical inputs (DIN_, EN_).

The MAX22208AUU's integrated lossless current detection eliminates the need for larger external power resistors, resulting in significant space and power savings compared to mainstream applications based on external detection resistors.

Basic parameter

Product: MAX22208AUU

Product: Half-Bridge Drivers

Working power supply current: 3.8A

Operating temperature: -40 °C to + 125°C

Installation style: SMD/SMT

Package/housing: TSOP-38

Number of outputs: 2 Output

Series: MAX22208

Supply voltage: 4.5V to 65V

The MAX22208AUU is suitable for the following applications:

Dc brush motor driver

Stepper motor driver

Solenoid valve driver

Latch valve
