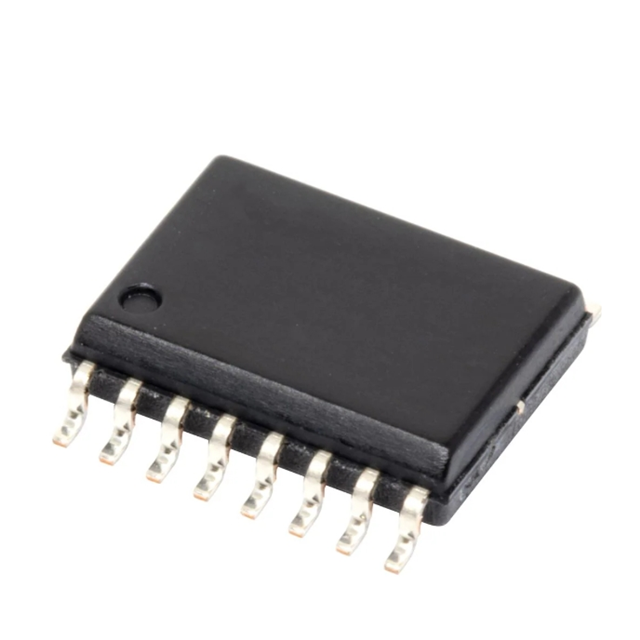

The ADUM240E1BRIZ is a four-channel digital isolator designed with Analog Devices iCoupler® technology. The ADUM240E1BRIZ isolation device combines high-speed, complementary metal-oxide semiconductor (CMOS) with single-chip air-core transformer technology, offering outstanding performance characteristics over alternative devices such as optocouplers and other integrated couplers.

The ADUM240E1BRIZ isolator has a maximum propagation delay of 13 ns and a pulse width distortion of less than 3 ns at 5 V. Has strict 3.0ns (maximum) channel matching.

The ADUM240E1BRIZ operates at 1.8V to 5V supply voltages, is compatible with low voltage systems, and is capable of voltage conversion across isolation grids.

Scope of application

ADUM240E1BRIZ is widely used in:

Universal multichannel isolation

Serial Peripheral Interface (SPI)/ data converter isolation

Industrial fieldbus isolation

Basic parameter

Model: ADUM240E1BRIZ

Number of channels: 4 channels

Polarity: Unidirectional

Data rate: 150 Mb/s

Insulation voltage: 5000 Vrms

Isolation type: Magnetic Coupling

Supply voltage: 1.7V to 5.5V

Working power supply current: 11.8mA

Propagation delay: 7.2ns

Operating temperature: -40 °C to + 125°C

Package/box: SOIC-16

Forward Channel: 4 channels

Maximum fall time: 2.5ns

Maximum rise time: 2.5ns

Humidity sensitivity: Yes

Product type: Digital Isolators

Pulse width: 6.6ns

Pulse width distortion: 0.5ns

Reverse Channel: 0 Channel
