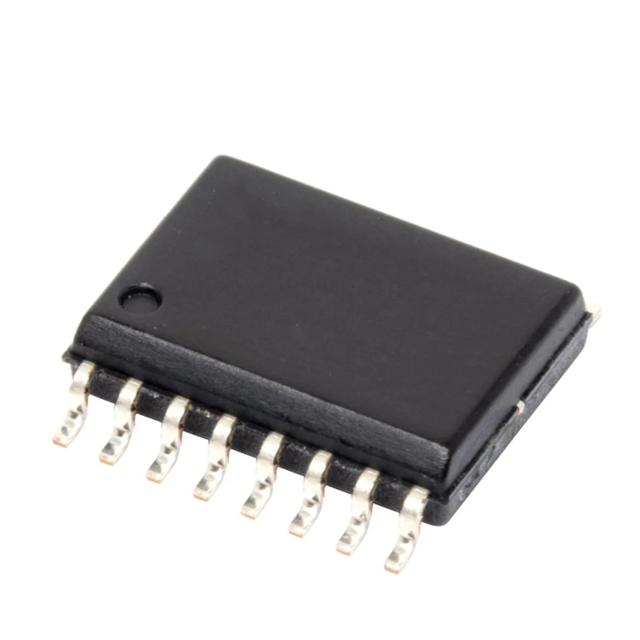

The ADUM1300WTRWZ is a three-channel digital isolator from Analog Devices using iCoupler technology with outstanding performance characteristics and low power consumption ‌‌.

The ADUM1300WTRWZ supports a variety of operating voltages, from 2.7V to 5.5V, is compatible with low voltage systems, and can achieve voltage conversion function. It has data transfer rates of up to 90 Mbps (NRZ mode), precise timing characteristics and low pulse width distortion (up to 2 ns) ‌. In addition, ADUM1300WTRWZ

Stable operation at high temperatures up to 125°C and high common-mode transient immunity (>25 kV/µs) ‌

Specifications of ADUM1300WTRWZ

Number of channels: : 3 channels

Polarity: : Unidirectional

Data rate: : 90 Mb/s

Insulation voltage: 2500 Vrms

Isolation type: Magnetic Coupling

Supply voltage: 2.7V to 5.5V

Working power supply current: 16 mA, 57 mA

Propagation delay time: : 32 ns

Operating temperature: -40 °C to + 125°C

Qualification: : AEC-Q100

Package: : Tube

Trademark: Analog Devices

Humidity sensitivity: : Yes

Working power supply voltage: : 5 V

Applications

The ADUM1300WTRWZ is used in a wide range of scenarios, including:

Universal multichannel isolation

SPI interface/data converter isolation

RS-232/RS-422/RS-485 transceiver

Industrial fieldbus isolation

Automotive system
