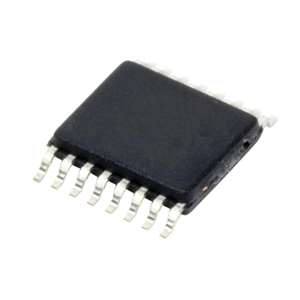

The ADUM141E1WBRQZ is a four-channel digital isolator based on Analog Devices' iCoupler® technology ‌. It combines high-speed, complementary metal-oxide semiconductor (CMOS) and monolithic air-core transformer technologies to provide outstanding performance characteristics over optocoupler devices and other integrated couplers.

The ADUM141E1WBRQZ data channel is self-contained and available in a variety of configurations with a voltage rating of 3.0 kV rms or 3.75 kV rms. The device operates in the supply voltage range of 1.8V to 5V on both sides, providing compatibility with lower voltage systems and enabling voltage conversion across isolation barriers.

Technical specification

Number of channels: 4 channels

Polarity: Unidirectional

Data rate: 150 Mb/s

Insulation voltage: 3750 Vrms

Isolation type: Magnetic Coupling

Supply voltage: 1.7V to 5.5V

Working power supply current: 11.4 mA

Propagation delay time: 15 ns

Operating temperature: -40 °C to + 125°C

Qualification: AEC-Q100

Package/housing: QSOP-16

Forward Channel: 3 Channel

Maximum fall time: 2.5ns

Maximum rise time: 2.5ns

Humidity sensitivity: Yes

Pd- Power dissipation: 1.64W

Product type: Digital Isolators

Pulse width: 6.6ns

Pulse width distortion: 0.5ns

Reverse Channel: 1 Channel
