The ADUM4402CRIZ is a four-channel digital isolator based on Analog Devices' iCoupler® technology ‌. It combines high-speed CMOS and monolithic air-core transformer technology to provide outstanding performance characteristics over other alternatives such as optocouplers and other integrated couplers.

The ADUM4402CRIZ features four independent isolated channels for a variety of channel configurations and data rates ‌. The device is suitable for applications that require high-speed data transmission and electrical isolation, such as industrial control, medical equipment, communication systems, etc.

Technical specification

Number of channels: 4 channels

Polarity: Unidirectional

Data rate: 90 Mb/s

Insulation voltage: 5000 Vrms

Isolation type: Magnetic Coupling

Supply voltage: 2.7V to 5.5V

Working power supply current: 830 uA

Propagation delay time: 32 ns

Operating temperature: -40 °C to + 105°C

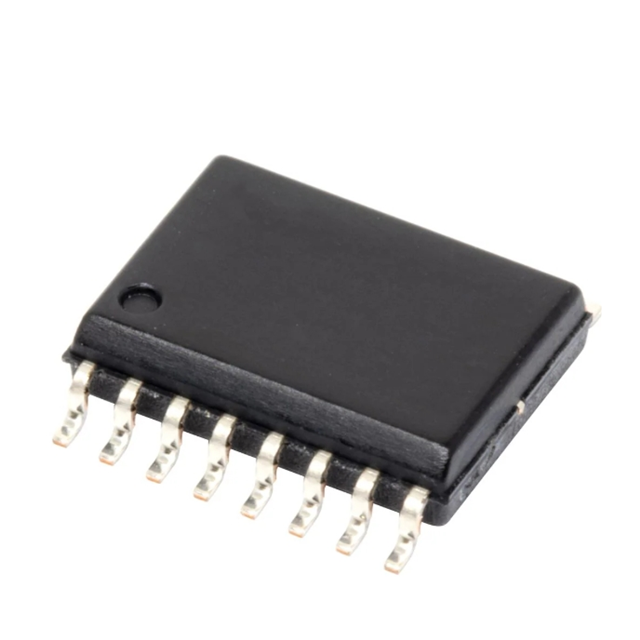

Package/box: SOIC-16

Maximum descent time: 3 ns (Typ)

Maximum rise time: 3 ns (Typ)

Humidity sensitivity: Yes

Working power supply voltage: 5.5V

Products: Digital Isolators

Product type: Digital Isolators

Pulse width: 11.1ns
