The ADN4651BRWZ is a signal-isolated, low-voltage differential signal (LVDS) buffer with data rates up to 600 Mbps and extremely low jitter.

The ADN4651BRWZ integrates iCoupler technology to enhance high-speed performance and provide electrical isolation of LVDS drivers and receivers in accordance with TIA/EIA-644-A standards. Thus, the direct isolation of LVDS signal chain is realized.

Applications

Analog Front end (AFE) isolation

Data plane isolation

Isolate high-speed clocks and data links

Provides isolation SPI for LVDS

Product attribute

Number of channels: 2 channels

Polarity: Unidirectional

Data rate: 600 Mb/s

Insulation voltage: 5000 Vrms

Isolation type: Magnetic Coupling

Power supply voltage - Max: 3.6V

Supply voltage - Min: 3 V

Working power supply current: 58 mA

Propagation delay time: 4 ns

Operating temperature: -40 °C to + 125°C

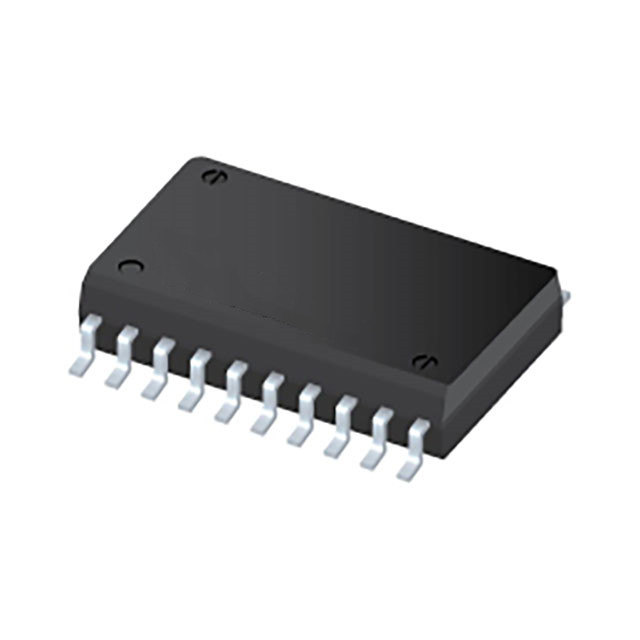

Package/box: SOIC-20

Development kit: EVAL-ADN4651EB1Z

Forward Channel: 1 Channel

Maximum drop time: 350 ps

Max rise time: 350 ps

Humidity sensitivity: Yes

Pd- Power dissipation: 2.78W

Product type: Digital Isolators

Reverse Channel: 1 Channel

Off: No Shutdown
