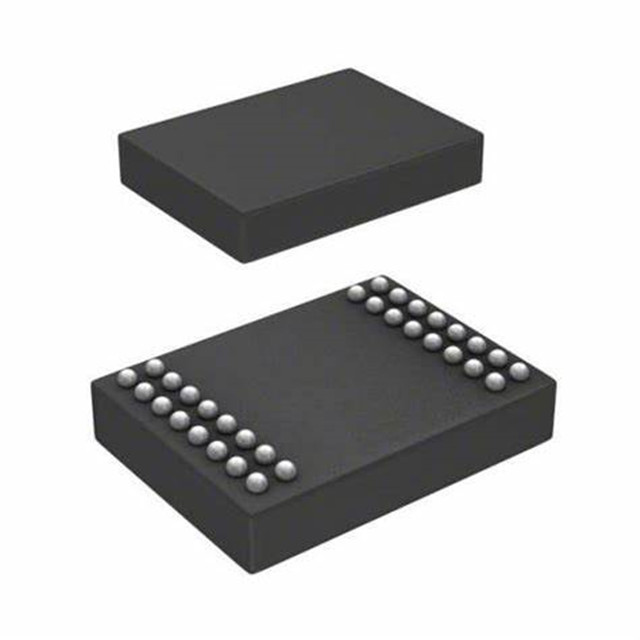

The LTM2883CY-5I is a complete current digital µModule® isolator. It does not require the use of external components. A single 3.3V or 5V power supply supplies both sides of the interface via an integrated isolated DC/DC converter. A logic power supply pin provides easy connections with different logic levels from 1.62V to 5.5V, independent of the main power supply.

Applications

Isolated SPI or I2C interface

Industrial system

Test and measurement equipment

Disconnect ground loop

Technical specification

Number of channels: 6 channels

Polarity: Bidirectional, Unidirectional

Data rate: 20 Mb/s

Insulation voltage: 2500 Vrms

Isolation type: Magnetic Coupling

Power supply voltage: 3 V to 3.6 V

Working power supply current: 19 mA

Propagation delay time: 60 ns

Operating temperature: 0°C to + 70°C

Development kit: DC1748A-A, DC1748A-B, DC1748A-C, DC1748A-D

Humidity sensitivity: Yes

Working power supply voltage: 5 V

Product type: Digital Isolators

Supported protocols: SPI, I2C
