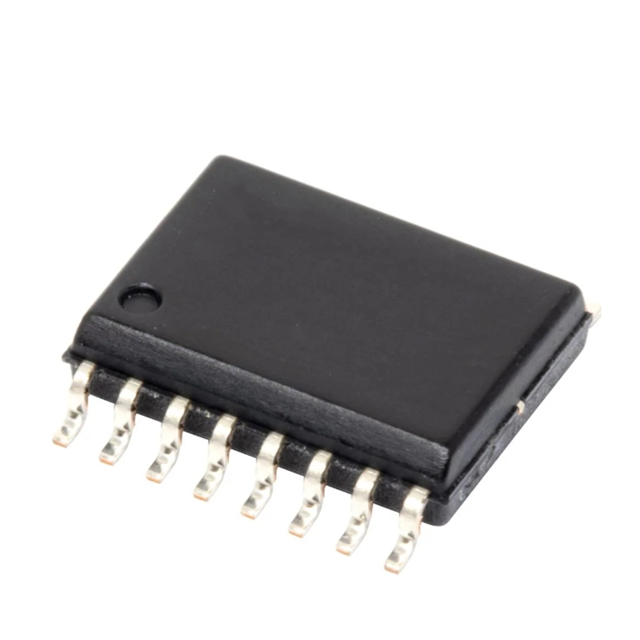

The ADUM6201ARIZ is a dual-channel digital isolator with integrated isoPower isolated DC-DC converters based on Analog Devices' iCoupler technology ‌‌. Available in a 16-pin SOIC package with an operating temperature range of -40°C to 105°C, the device is suitable for low-power isolation designs and eliminates the need for a separate isolated DC-DC converter ‌.

Technical specification

Number of channels: 2 channels

Polarity: Unidirectional

Data rate: 25 Mb/s

Insulation voltage: 5000 Vrms

Isolation type: Magnetic Coupling

Power supply voltage: 3 V to 5.5 V

Working power supply current: 10 mA

Propagation delay time: 55 ns

Operating temperature: -40 °C to + 105°C

Maximum descent time: 2.5ns (Typ)

Max rise time: 2.5ns (Typ)

Humidity sensitivity: Yes

Working power supply voltage: 5.5V

Output current: 100 mA

Product type: Digital Isolators

Pulse width: 1000 ns

Applications

- RS-232/RS-422/RS-485 transceiver

- Industrial fieldbus isolation

- Power start bias and grid drive

- Isolation sensor interface

- Industrial PLC
