The LTM2892HY-S is a complete current digital µModule® (micro module) isolator. It does not require the use of external components. Separate 3V to 5.5V power supplies are responsible for powering each side of the digital isolator. Separate logic power supply pins provide easy connections with different logic levels from 1.62V to 5.5V, independent of the main power supply.

Applications

Isolated SPI or I2C interface

Industrial system

Test and measurement equipment

Disconnect ground loop

Features

6-channel logical isolator: 3500VRMS (lasts 1 minute)

UL-CSA Approved document # E151738

3V to 5.5V power supply operation

No external components required

SPI/Digital (LTM2892-S) or I2C (LTM2892-I) options

Withstand high common mode transients: 50kV/μs

High-speed operation:

10MHz digital isolation

4MHz / 8MHz SPI isolation

400kHz I2C isolation

Can operate at temperatures up to 125°C (Class H)

1.62V to 5.5V logic power supplies are used for flexible digital interfaces

±15kV ESD HBM is available at both ends of the isolation barrier

Maximum continuous operating voltage: 850VPEAK

Low current shutdown mode (<10μA)

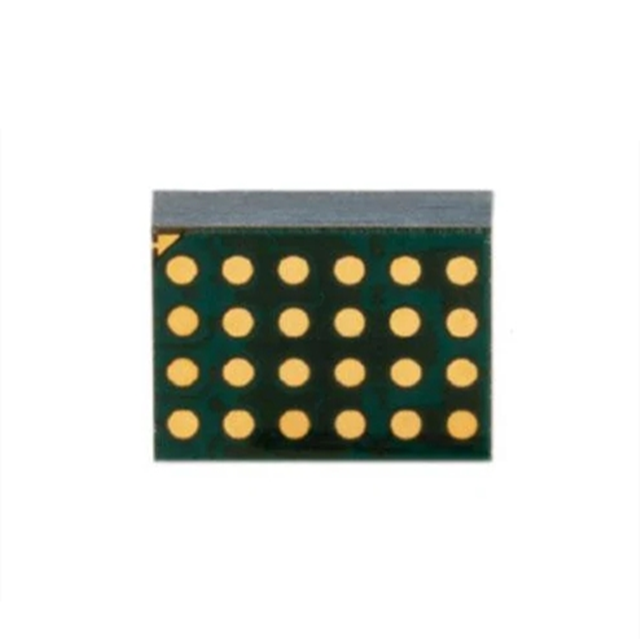

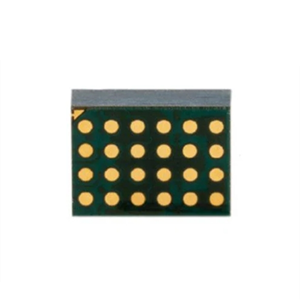

Small form factor (9mm x 6.25mm x 2.91mm) BGA package
