The ADUM4472CRIZ is a four-channel digital isolator with integrated regulated DC-DC isolated power controller and integrated internal MOSFET driver. The DC/DC controller has an isolated PWM feedback built into the primary side and uses iCoupler® chip-level transformer technology and full loop compensation. Optical couplers can be eliminated for feedback and loops can be compensated for stability.

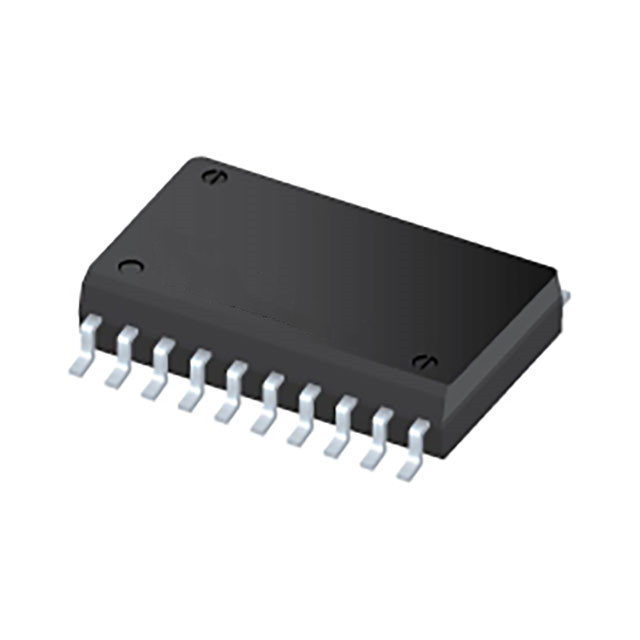

The ADUM4472 comes in a wide-body SOIC package that fully integrates feedback and loop compensation to provide a smaller size and 8.3 mm creepage distance solution.

Applications

Power start bias and grid drive

Isolation sensor interface

Process control

RS-232/RS-422/RS-485 transceiver

The device features include

Built-in compensation for isolated PWM feedback

The primary transformer driver can support 2.5 W output power at 5 V input voltage

Adjustable voltage regulator output: 3.3V to 24V

Efficiency up to 80%

Four-way DC to 25 Mbps (NRZ) signal isolation channel

Adjustable oscillator frequency: 200 kHz to 1 MHz

Provides the soft startup function during power-on

Pulse by pulse overcurrent protection

Thermal shutoff

5,000 V rms isolation

High common-mode transient immunity: >25 kV/μs

20-pin SOIC package with 8.3 mm creepage distance

Working at high temperature: 105℃

Safety and regulatory certification

UL Certification: 5000 V rms per minute, according to UL 1577

Certified by IEC 62368-1, IEC 61010-1 and IEC 60601-1 CSA

VDE Certificate of conformity

VDE V 0884-10

VIORM = 849 V peak
