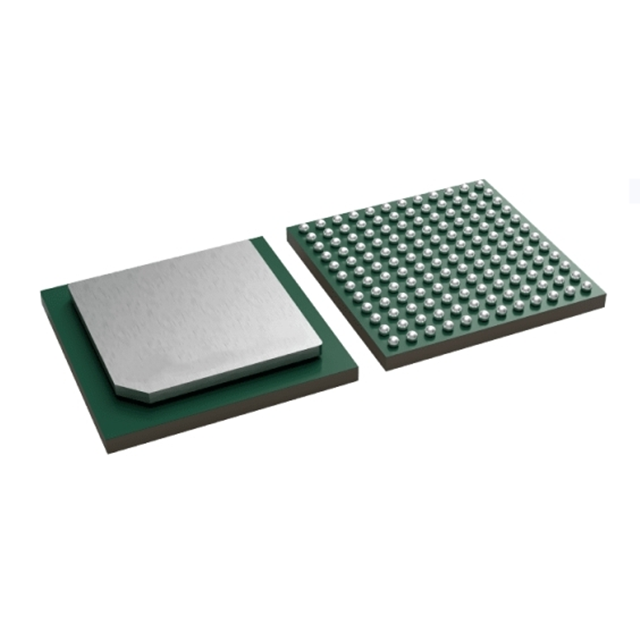

The ADC12SJ1600AAVQ1 device is an automotive class 1-channel, 12-bit, 1.6-GSPS ADC with JESD204C interface, which is ideal for optical detection and ranging (LiDAR) systems due to its low power consumption, high sampling rate and 12-bit resolution. This device meets the standards for automotive applications.

Features

• Complies with AEC-Q100 standard for automotive applications:

- Temperature Class 1: -40 °C to +125°C, TA

• ADC core:

- Resolution: 12 bits

- Maximum sampling rate: 1.6GSPS

- Non-interleaving architecture

- Internal jitter reduces high harmonics

• Performance specifications (-1DBFS) :

- SNR (100MHz) : 57.4dBFS

- ENOB (100MHz) : specifies 9.1 bits

- SFDR (100MHz) : 64dBc

- Background noise (-20dbfs) : -147dbfs

• Full scale input voltage: 800mVP-DIFF

• Full power input bandwidth: 6GHz

• JESD204C Serial data interface:

- A total of 2 to 8 (four channel/two channel) or 1 to 4 (single channel) serializer/destringer channels are supported

- Max baud rate: 17.16Gbps

- 64B/66B and 8B/10B encoding modes

- Subclass 1 supports deterministic delay

- Compatible with JESD204B receiver

• Optional internal sampling clock generation

- Internal PLL and VCO (7.2-8.2GHz)

• The SYSREF window simplifies synchronization

• Four clock outputs simplify the system clock

- Reference clock of the FPGA or adjacent ADC

- Reference clock of the serializer/deserializer transceiver

• Timestamp input and output of the pulse system

• Power consumption (1GSPS) :

- Four channels: 477mW per channel

- Dual-channel: 700mW per channel

- Single channel: 1000mW

• Power supply: 1.1V/1.9V

Application

• Laser Radar (LiDAR)
