The CY8C4014SXA-421ZT is part of the PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with Arm® Cortex®-M0 CPUs that are also AEC-Q100 compliant. It combines programmable and reconfigurable analogue and digital modules with flexible auto-routing.The PSoC™ 4000 product family is the smallest member of the PSoC™ 4 platform architecture. It is a combination of a microcontroller with standard communication and timing peripherals, a capacitive touch sensing system (CAPSENSE™) with best-in-class performance, and general-purpose analogue.The PSoC™ 4000 products will be fully upwardly compatible with members of the PSoC™ 4 platform to meet new application and design requirements.

Product Attributes

Product Category: ARM Microcontrollers - MCUs

Family: PSoC4000

Mounting Style: SMD/SMT

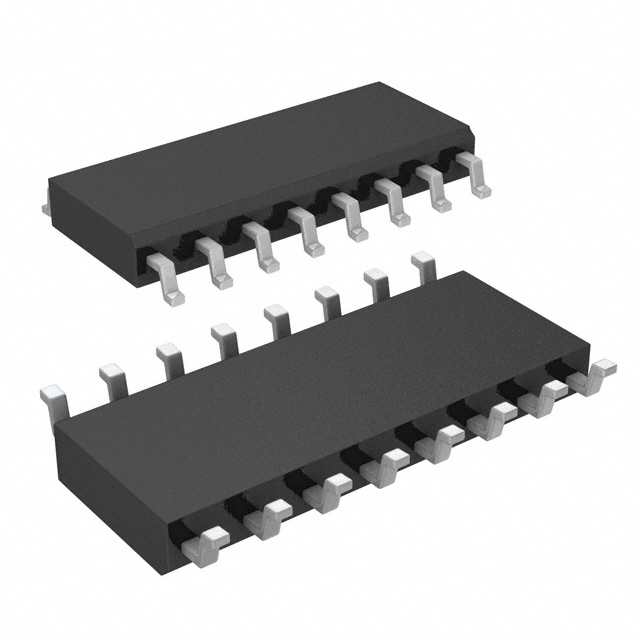

Package / Case: SOIC-16

Core: ARM Cortex M0

Programme memory size: 16 kB

Data bus width: 32 bit

Maximum clock frequency: 16 MHz

Number of inputs/outputs: 10 I/Os

Data RAM size: 2 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 5.5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

Analogue supply voltage: 1.71 V to 5.5 V

Data Ram Type: SRAM

Data ROM Size: 4 kB

Data Rom Type: ROM

Interface Type: I2C

Humidity Sensitivity: Yes

Operating supply voltage: 3.3 V

Processor Family: PSoC 4000

Product: SoCs

Programme memory type: Flash

Factory Package Quantity: 2500

Trade Name: PSoC

Watchdog Timer: Watchdog Timer
