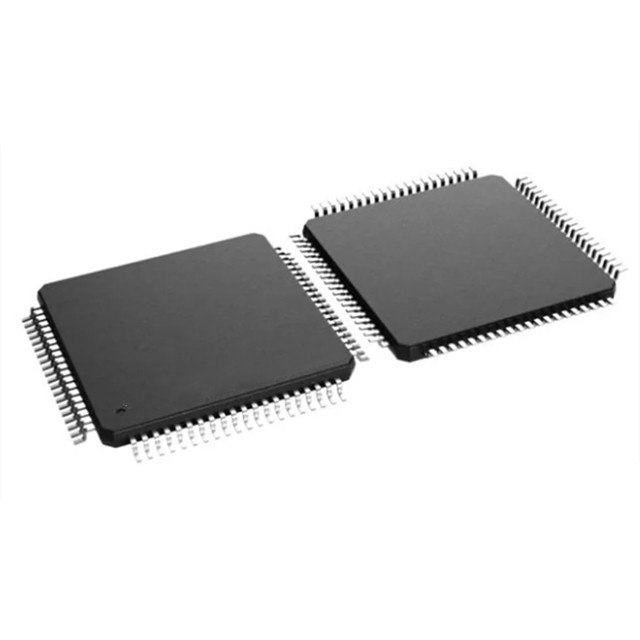

The MSPM0L1227SPNR device is a mixed-signal microcontroller based on the ARM® Cortex-M0 + 32-bit core platform. It is part of the ultra-low power 32-bit MSPM0 MCU series and operates at a frequency up to 32MHz.

The MSPM0L1227SPNR has 128KB of flash and 32KB of SRAM, supports field firmware update and provides address swap support ‌, and has the following key specifications:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 32MHz

Connection capabilities: DALI, I2C, IrDA, LINbus, Smart Card, SMBus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, LCD, POR, PWM, WDT

I/O number: 73

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 32K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 6x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Supplier device package: 80-LQFP (12x12)

The MSPM0L1227SPNR is mainly applied in the following scenarios, including:

Power grid infrastructure

Factory automation and control

Electrical appliances

Medical care and health preservation

Testing and Measurement
