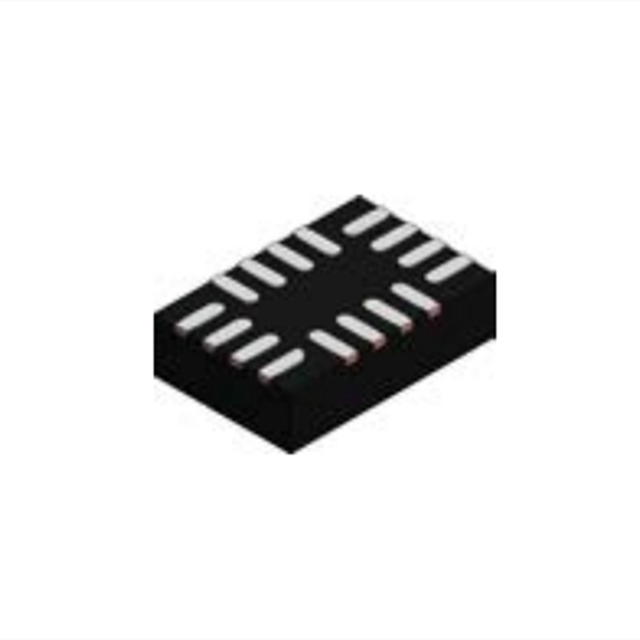

The MSPM0L1106TRTRR is a 32-bit microcontroller manufactured by (TI) based on an enhanced Arm Cortex-M0+ core operating at up to 32MHz. This MCU provides up to 64KB of embedded flash program memory and 4KB of SRAM.

In addition, the MSPM0L1106TRTRR features a high-speed on-chip oscillator with an accuracy of up to ±1.2%, eliminating the need for an external crystal. Other features include 3-channel DMA, 16-bit and 32-bit CRC accelerators, as well as various high-performance analog peripherals, such as a 12-bit 1.68MSPS ADC with a configurable internal voltage reference, a universal amplifier and an on-chip temperature sensor. These features make the MSPM0L1106TRTRR widely used in the following fields:

Battery charging and management

• Power supply and power transmission

• Personal electronics

• Building security and fire safety

• Networked peripherals and printers

• Power grid infrastructure

• Smart meter reading

• Communication module

• Medical care and health care

• Lighting

The performance parameters of MSPM0L1106TRTRR include:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 32MHz

Connection capabilities: DALI, I2C, IrDA, LINbus, Smart Card, SMBus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 13

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 4K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 6x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Supplier device packaging: 16-WQFN (3x2)
