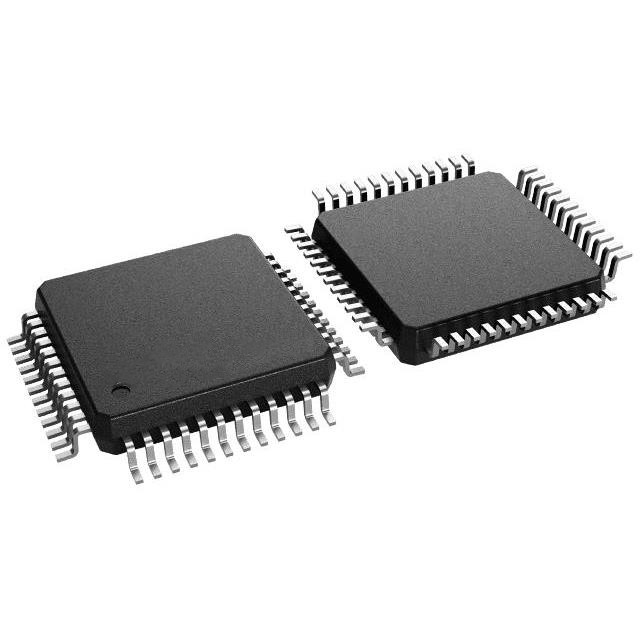

MSPM0L2227SPMR is a 32-bit microcontroller based on ARM Cortex-M0+ core with high integration and low power consumption ‌. This microcontroller is produced by (TI) and is mainly applied in embedded systems that require high integration and low power consumption. Typical applications include power grid infrastructure, factory automation and control, electrical medical and health care, testing and measurement, and other fields.

Technical Specification

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 32MHz

Connection capabilities: DALI, I2C, IrDA, LINbus, Smart Card, SMBus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, LCD, POR, PWM, WDT

I/O number: 59

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 32K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 6x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Supplier device package: 64-LQFP (10x10)

In addition, the MSPM0L2227SPMR device features a VBAT standby island, an optional segmented LCD controller, a cybersecurity implementation tool, and high-performance integrated analog, and offers outstanding low-power performance throughout the entire operating temperature range. An additional 32-byte backup memory powered by the VBAT pin is provided in the VBAT island, and its contents will be retained even if the main power supply (VDD) is lost.
