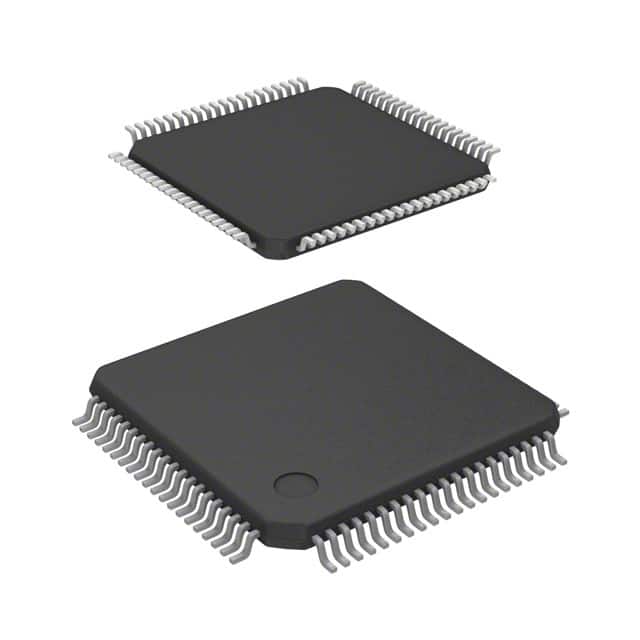

The STM32G441MBT6 device is based on a high-performance ARM® Cortex®-M4 32-bit RISC kernel in an 80-pin LQFP package with operating frequencies up to 170MHz. The Cortex-M4 core uses a single-precision floating-point unit (FPU) that supports all Arm single-precision data processing instructions and all data types. With the help of flexible interconnection matrix, the device can realize independent communication between peripherals, save CPU resources and reduce power consumption. The device is highly compatible with the STM32F3 family, ensuring excellent efficiency when designing applications derived products at different performance levels.

Product specifications:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit

Speed: 170MHz

Connection capacity: CANbus, I²C, IrDA, LIN, SPI, UART/USART, USB

Peripheral: undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 66

Program storage Capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 32K x 8

Voltage-power supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 23x12b SAR; D/A 4x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: surface mount type

Package/case: 80-LQFP

Supplier Device Package: 80-LQFP (12x12)
