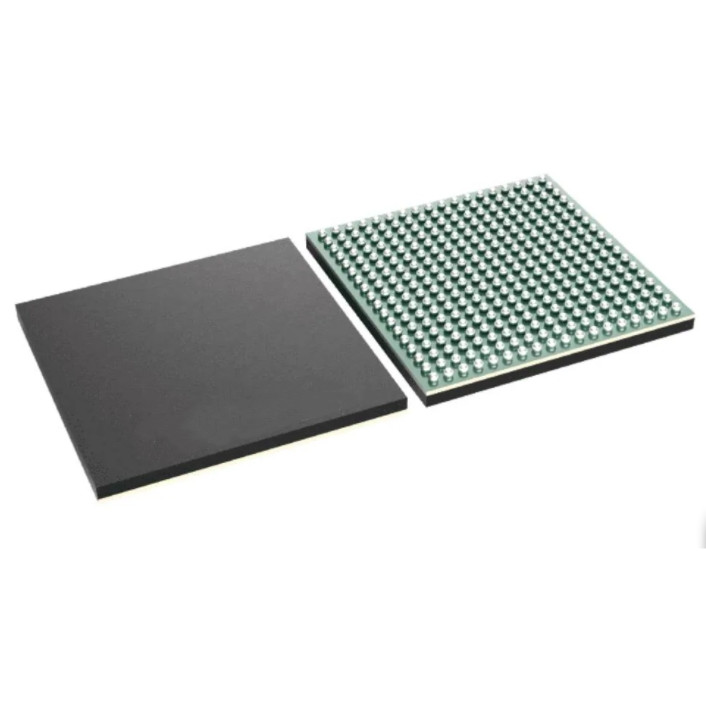

For picture reference, please see the specifications
< >

Commodity Model:DDC3256ZWX

Trade Name:Analog-to-digital converter (ADC)

Brand:TI

Particular Year:24+

Package:336-NFBGA

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DDC3256ZWX
Package
336-NFBGA
Describe
256-channel 20kSPS current input analog-to-digital converter

Product Description

The DDC3256ZWX is A 24-bit, 256-channel current input analog-to-digital (A/D) converter. It combines current-voltage conversion and analog-to-digital conversion through current integration.


Features

• Single-chip solution for direct measurement of 256 low-level currents simultaneously

• Adjustable full scale charge range up to 320pC

• Input current: 1µA (Max)

• Adjustable speed, integration time as low as 50µs (20KSPS per channel)

• Resolution: 24 bits

• Low power loss: 1.2mW/ channel

• Integral nonlinearity: ±0.025% (±1ppm at full scale, all channels are active)

• Low noise: 0.26fCrms (320pC FSR and 20pF sensor capacitance)

• No charge loss

• On-chip temperature sensor

• Serial LVDS output interface

• 1.85-V single power supply

In-package bypass capacitors and reference buffers reduce PCB area and design complexity


Applications

• CT scanner data acquisition system

• Photodiode sensor

• X-ray inspection system

• Optical fiber power monitoring

• Multi-channel current/voltage meter
