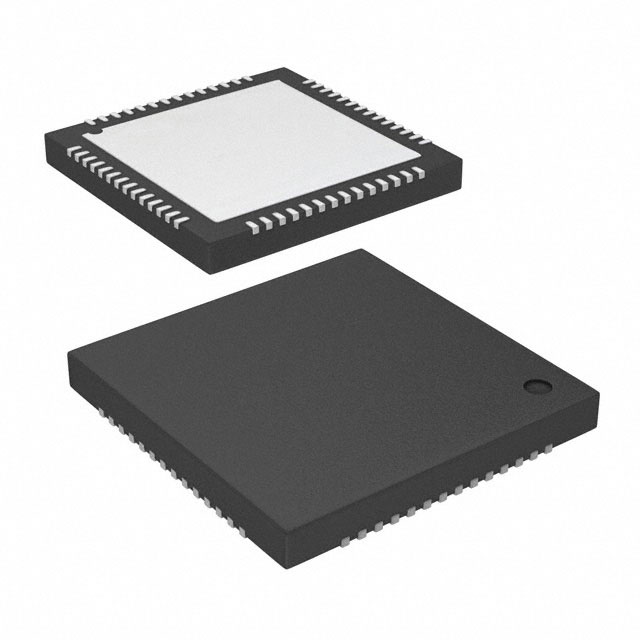

CY8C4248LQI-BL543 is a scalable and reconfigurable platform architecture for a family of programmable embedded systemcontrollers with an Arm® Cortex®-M0 CPU. It combines programmable and reconfigurable analog and digitalblocks with flexible automatic routing.

Features

48-MHz Arm® Cortex®-M0 CPU with single-cycle multiply and DMA

Up to 256 KB of flash with read accelerator

Up to 32 KB of SRAM

2.4GHz RF transceiver with 50-Ω antenna drive

Digital PHY- Link-layer engine supporting master and slave modes

RF output power: –18 dBm to +3 dBm

RX sensitivity: –89 dBm- RX current: 18.7 mA

TX current: 15.6 mA at 0 dBm

Received Signal Strength Indication (RSSI): 1-dB resolution

Active mode: 1.7 mA at 3-MHz flash program execution

Deep Sleep mode: 1.5 µA with watch crystal oscillator (WCO) on

Hibernate mode: 150 nA with RAM retention

Stop mode: 60 nA

LCD drive supported on all pins (common or segment)

Operates in Deep Sleep mode with four bits per pin memory

Four 16-bit timer/counter pulse-width modulator (TCPWM) blocks

Center-aligned, Edge, and Pseudo-random modes

Applications

Home appliances

Information & communication technologies
