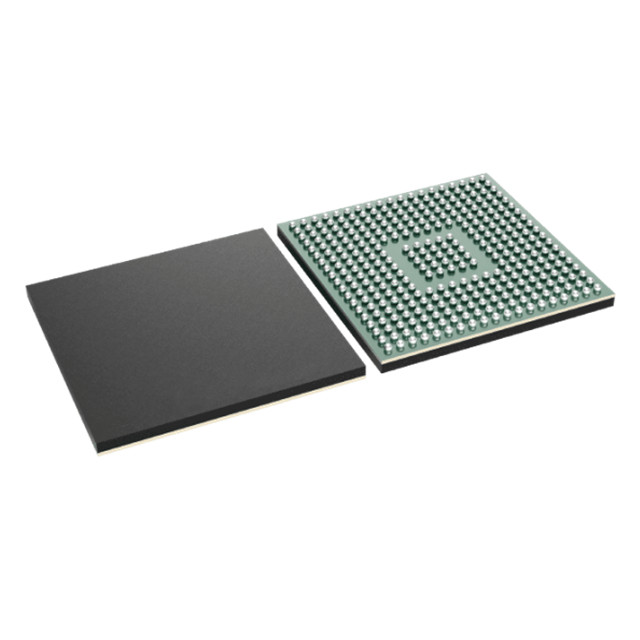

TMS320F28377SZWTQ is a high-performance microcontroller launched by (TI). It belongs to the C2000 real-time microcontroller series. The TMS320F28377SZWTQ is a powerful 32-bit floating-point microcontroller unit (MCU), specifically designed for advanced closed-loop control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, as well as induction and signal processing. This microcontroller is based on TI's 32-bit C28x floating-point CPU and provides a signal processing performance of 200MHz. The main technical specifications of TMS320F28377SZWTQ include:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 200MHz

Connection capabilities: CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB

Peripheral devices: DMA, POR, PWM, WDT

I/O number: 169

Program storage capacity: 1MB (512K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 82K x 16

Voltage-supply (Vcc/Vdd) : 1.14V to 3.47V

Data converter: A/D 24x12b, 12x16b; D/A 3x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device packaging: 337-NFBGA (16x16)

Target application

• Medium/short range radar

• Traction inverter motor control

• Control of large commercial HVAC motors

• Automatic sorting equipment

• CNC control

• AC charging stations

• DC charging (pile) station

• Electric vehicle charging station power module

• Energy Storage Power Conversion System (PCS)

• Central inverter

• Solar power Optimizer

• string type inverter

• Inverter and motor control

• On-board charger (OBC) and wireless charger

• Linear motor segment controller

• Servo drive control module

• AC input BLDC motor driver

• DC input BLDC motor driver

• Industrial AC-DC

Three-phase UPS
