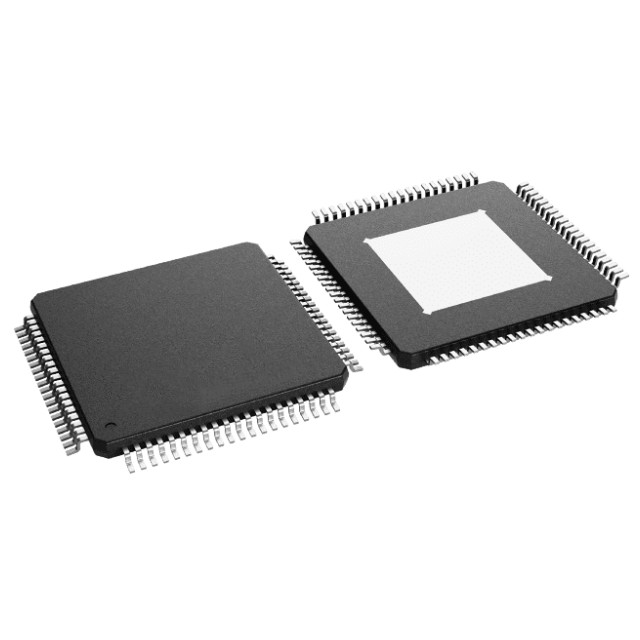

The TMS320F28062FPFPQ is an automotive C2000™ 32-bit microcontroller, mainly optimized for processing, sensing and driving, which can enhance the closed-loop performance of real-time control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, motor control, as well as sensing and signal processing. The TMS320F28062FPFPQ operates at frequencies up to 90MHz, supports 16 × 16 and 32 × 32 multiplications, has a floating-point unit (FPU) ‌, and its technical parameters include:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 90MHz

Connection capabilities: CANbus, I2C, McBSP, SCI, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 40

Program storage capacity: 128KB (64K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 26K x 16

Voltage-supply (Vcc/Vdd) : 1.71V to 1.995V

Data converter: A/D 12x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device packaging: 80-HTQFP (12x12)

Application scenarios

The TMS320F28062FPFPQ microcontroller is particularly suitable for applications that require high real-time control performance, such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, motor control, and sensing and signal processing, ‌.
