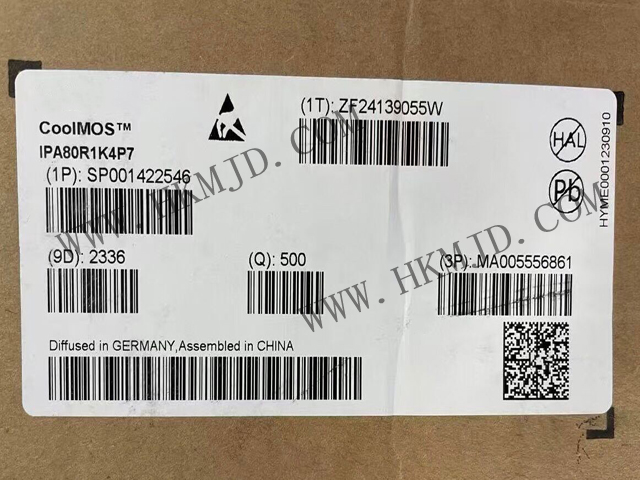

For picture reference, please see the specifications
< >

Commodity Model:IPA80R1K4P7

Trade Name:N-Channel Power MOSFET

Brand:INFINEON

Particular Year:23+

Package:PG-TO220-3

Delivery Date:New and Original

Stock: 4000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IPA80R1K4P7
Package
PG-TO220-3
Describe
Through-hole N-channel 800 V 4 A (Tc) 24 W (Tc) PG-TO220-3-31

Product Description

The IPA80R1K4P7 is an Infineon 800V CoolMOS™ P7 series super-junction MOSFET in a TO-220-3F package, optimised for low-power switch-mode power supply (SMPS) applications such as adapters, chargers, LED drivers and industrial power supplies. This device is based on advanced super-junction technology, offering low on-resistance, high switching efficiency, and excellent thermal performance, significantly enhancing system energy efficiency and power density.


IPA80R1K4P7 Features

• Industry-leading FOMRDS(on)*Eoss; reduced Qg, Ciss, and Coss

• Industry-leading DPAKRDS(on)

• Industry-leading V(GS)th of 3V, with the smallest V(GS)th variation range of ±0.5V

• Integrated Zener diode ESD protection

• Fully compliant with JEDEC standards, suitable for industrial applications

• Fully optimised product portfolio


IPA80R1K4P7 Advantages

• Best performance

• Supports higher power density designs, reducing BOM costs and assembly costs

• Easy to drive and parallel

• Reduces ESD-related failures, improving production yield

• Improves production yield by reducing ESD-related failures

• Reduces production issues and lowers field repair rates

• Facilitates selection of suitable devices for fine-tuning designs


Potential Applications for IPA80R1K4P7

• Suitable for hard-switching and soft-switching flyback topologies in LED lighting, low-power chargers and adapters, audio, auxiliary power supplies, and industrial power supplies. Also suitable for consumer applications and the PFC stage in solar systems.
