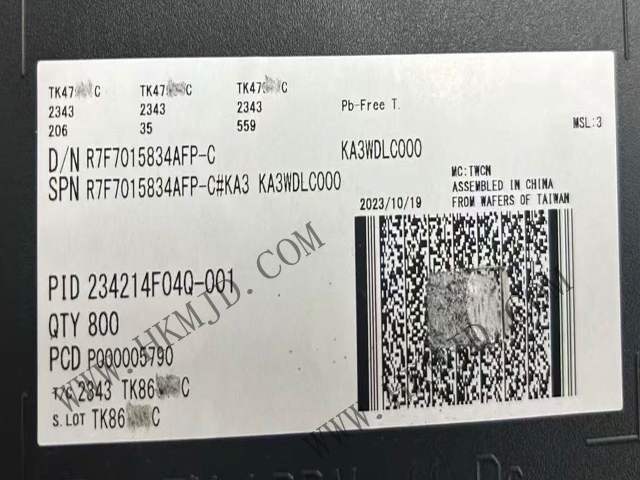

For picture reference, please see the specifications
< >

Commodity Model:R7F7015834AFP

Trade Name:Automotive Microcontrollers

Brand:Renesas

Particular Year:23+

Package:QFP144

Delivery Date:New and Original

Stock: 16000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
R7F7015834AFP
Package
QFP144
Describe
High-end Automotive Microcontrollers Ideal for Body Applications

Product Description

The R7F7015834AFP is a 32-bit high-performance microcontroller (MCU) belonging to the RH850/F series, specifically designed for automotive electronics applications. The chip is packaged in a 144-pin LQFP package, featuring 2MB of flash memory, 192KB of RAM, and 64KB of data flash memory, and supports a 120MHz clock speed. It is suitable for real-time control tasks in harsh environments such as body control, powertrain, and in-vehicle networks.


R7F7015834AFP Core Features

RH850 core with a 32-bit floating-point unit (FPU) for optimised processing of complex algorithms.

120MHz clock speed to ensure real-time control response speed.

Communication interfaces: 6x CAN/CAN-FD, 6x UART, 12x LIN, 1x I²C to meet in-vehicle network requirements.

Analogue functions: 24-channel 12-bit ADC + 24-channel 10-bit ADC, supporting high-precision signal acquisition.

Compliant with AEC-Q100 standards, operating temperature range -40°C to +125°C, suitable for extreme environments.

Multiple protection mechanisms: watchdog timer (WDT), low voltage detection (LVI), power monitoring (POC), etc.

Low-power design: 3.0V to 5.5V wide voltage supply, supports low-power mode (LPS), optimises energy efficiency.


R7F7015834AFP Technical Specifications

Product Type: 32-bit Microcontroller - MCU

Series: RH850/F1K

Mounting Style: SMD/SMT

Package/Case:    LQFP-144

Core:    RH850G3KH

Program Memory Size:    2 MB

Data RAM Size:    192 kB

Data Bus Width:    32-bit

Maximum Clock Frequency:    120 MHz

Number of I/O Pins:    120 I/O

Power Supply Voltage - Minimum:    3 V

Power Supply Voltage - Maximum:    5.5 V

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

Qualification:    AEC-Q100

Data RAM Type:    GRAM

Data ROM Type:    EEPROM

Interface Type:    I2C, SPI, UART

Humidity Sensitivity:    Yes

ADC Channel Count:    36 Channels

Operating Power Supply Voltage:    3 V to 5.5 V


R7F7015834AFP Typical Applications

Body Electronics: Door Control, Seat Adjustment, Lighting Management.

Powertrain: Engine Control, Transmission Management.

In-Vehicle Networking: Gateway, CAN/CAN-FD Communication Nodes.
