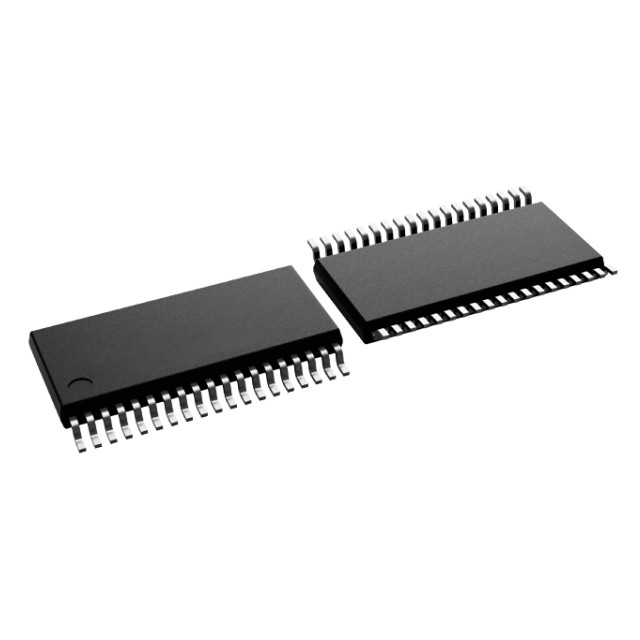

The TMS320F28022DAQR is a 32-bit MCU (microcontroller) based on the C2000 ™, specifically designed for automotive applications. The microcontroller has a frequency of 50MHz, 32KB of flash memory and 6KB of RAM‌. Other features include 32-bit CPU timer, single-zone code security, watchdog timer, UART, CAN bus interface, 12-bit analog-to-digital converter (ADC), and multiple communication interfaces such as I2C, SPI, and UART‌.

The main parameters of TMS320F28022DAQR include:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 50MHz

Connection capabilities: I2C, SCI, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 20

Program storage capacity: 32KB (16K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 6K x 16

Voltage-supply (Vcc/Vdd) : 1.71V to 1.995V

Data converter: A/D 7x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device packaging: 38-TSSOP

These parameters make the TMS320F28022DAQR suitable for automotive electronics systems that require high precision control and real-time response, such as engine control, body control, safety systems, etc. ‌.
