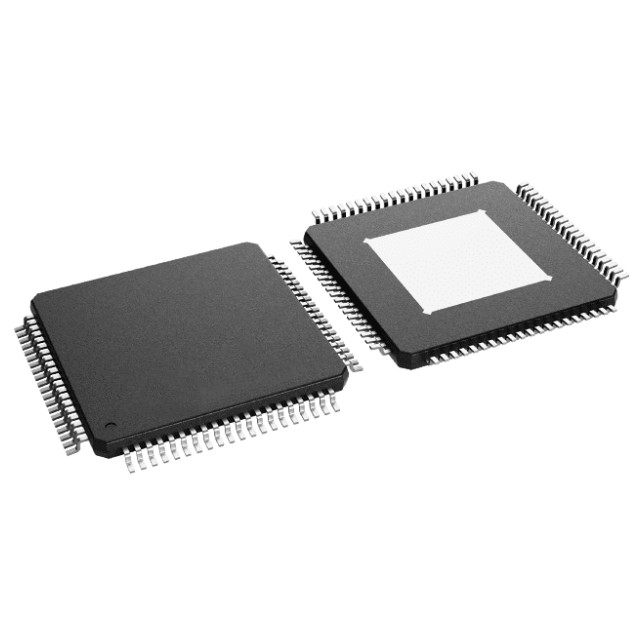

The TMS320F28062PFPQ is a 32-bit automotive-grade microcontroller produced by (TI), belonging to the C2000 series. Youdaoplaceholder0 This microcontroller is optimized for processing, sensing and drive and is particularly suitable for applications requiring high real-time control, such as industrial motor drives, photovoltaic inverters, digital power supplies, electric vehicles and transportation, motor control, and sensing and signal processing ‌. The TMS320F28062PFPQ has the following main specifications:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 90MHz

Connection capabilities: CANbus, I2C, McBSP, SCI, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 40

Program storage capacity: 128KB (64K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 26K x 16

Voltage-supply (Vcc/Vdd) : 1.71V to 1.995V

Data converter: A/D 12x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device packaging: 80-HTQFP (12x12)

Application field

The TMS320F28062PFPQ is widely used in industrial applications that require high real-time control, such as motor control, photovoltaic inverters, digital power supplies, electric vehicles and transportation, etc. Its high performance and rich peripherals make it excel in applications that require complex computing and control ‌.
