Description: The TLE9877QTW40 is a single-chip three-phase motor driver that integrates the industry-standard Arm Cortex-M3 core to enable advanced motor control algorithms, such as field-oriented control. It includes six fully integrated NFET drivers optimized to drive three-phase motors via six external power supply NFets, a charge pump to support low-voltage operation and programmable current, and current slope control to optimize EMC behavior.

Device: TLE9877QTW40XUMA1

Product Category: ARM Microcontroller - MCU

Series: : TLE987x

Installation style: SMD/SMT

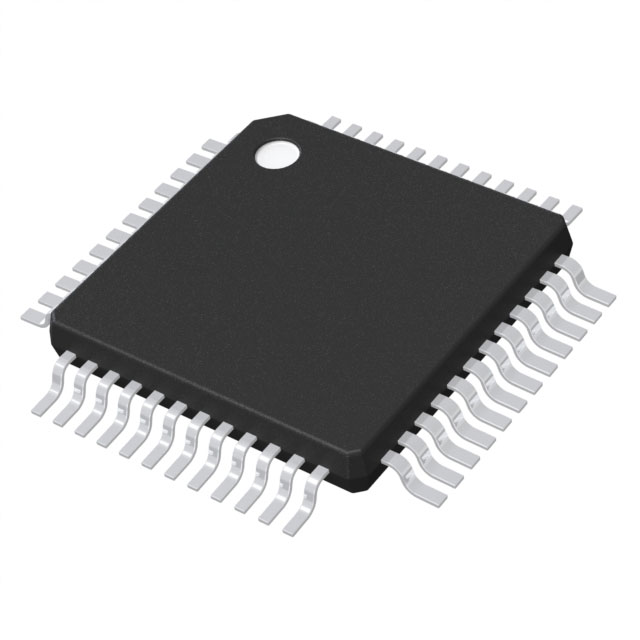

Package/box: : TQFP-48

Core: : ARM Cortex M3

Program memory size: : 64 kB

Data bus width: : 32 bit

ADC resolution: : 10 bit

Max clock frequency: : 40 MHz

Number of inputs/outputs: : 10 I/ OS

Data RAM size: : 6 kB

Power supply voltage - Min: : 5.5V

Power supply voltage - Max: : 27 V

Minimum operating temperature: -40 °C

Maximum operating temperature: : + 175°C

Data Ram type: : RAM

Data ROM size: : 4 kB

Data Rom type: : EEPROM

Interface type: LIN, UART

Humidity sensitivity: : Yes

Number of ADC channels: : 5 channels

Program memory type: : Flash
