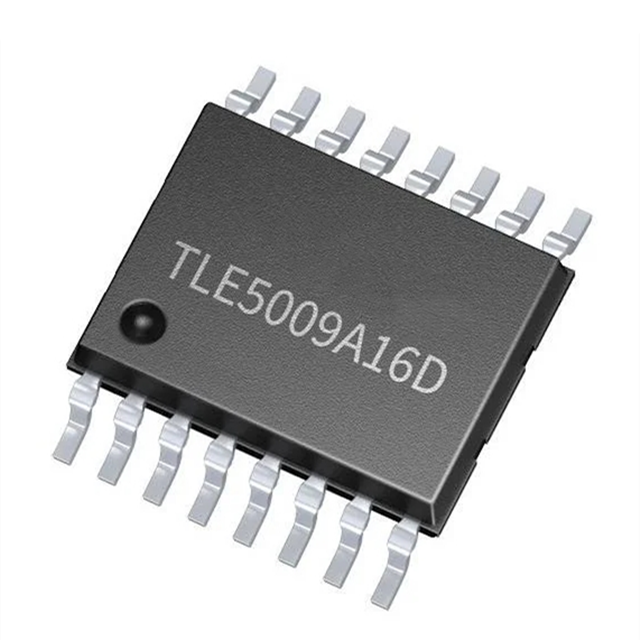

Description: The TLE5009A16D is an Angle sensor with analog output. It uses giant magnetoresistance (GMR) elements to measure the sine and cosine angular components to detect the direction of the magnetic field. It provides analog sine and cosine output voltages describing magnetic angles in the range 0° to 360°.

Device: TLE5009A16D-E2210

Type: Magnetic position sensor

Application: Designed for angular position sensing automotive applications

Device parameter

For measurement: Angle

Technology: Magnetoresistance

Rotation Angle - Electrical, mechanical: 0° ~ 360°, continuous

Linear range: -

Output: Analog voltage

Output signal: Cosine, Sine

Actuator type: External magnet, not included

Linearity: -

Resistance tolerance: -

Voltage - Power supply: 4.5V ~ 5.5V

Mounting type: Surface mount type

Terminal style: Gullwing

Operating temperature: -40°C ~ 125°C

Class: Automobile class

Qualification: AEC-Q100

Package/housing: 16-TSSOP (0.154", 3.90mm wide)

Supplier device package: PG-TDSO-16

Basic product number: TLE5009
