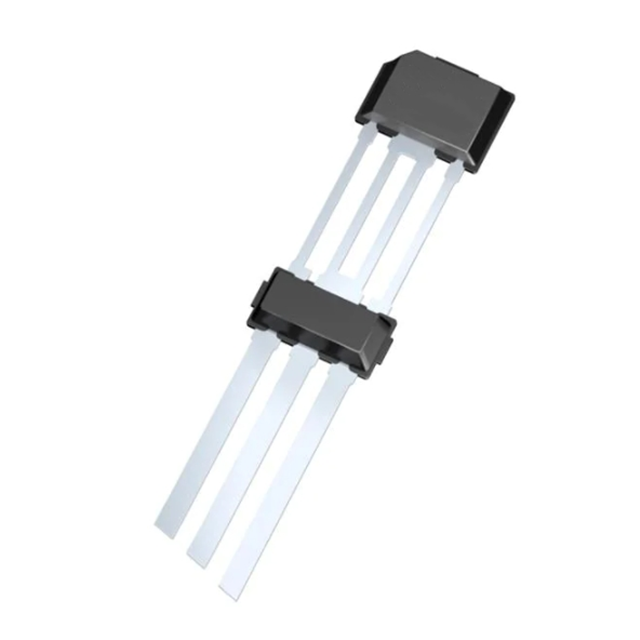

For picture reference, please see the specifications
< >

Commodity Model:TLE4986C-XTS-M47

Trade Name:Magnetic Sensors

Brand:INFINEON

Particular Year:25+

Package:PG-SSO-3

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
TLE4986C-XTS-M47
Package
PG-SSO-3
Describe
Camshaft sensor based on Hall effect for SmCo reverse offset magnet

Product Description

The TLE4986C-XTS-M47 active Hall sensor is highly suitable for camshaft applications and similar industrial applications (such as speedometers). The basic function of this device is to map gears or notches to unique electrical output states. The TLE4986C-XTS-M47 has an electronic dressing option for post-manufacturing dressing, so that true power-on functionality can be provided even in cases of production expansion (such as different magnetic configurations or misalignment).


The main features of TLE4986C-XTS-M47 include:

Hall switch sensor, used for measuring the speed or phase of poles/gears

Digital output signal (voltage interface)

Single-cell chopper Hall system

TPO true power-on function

TIM twisted and installed independently

Dynamic self-calibration algorithm

Programmable switch points at the end of the row

EEPROM for various algorithm options

The TC of the anti-bias magnet has been pre-programmed

High resistance to mechanical stress

High ESD and EMC tolerance capability

Higher μ-cut capability

Wide operating temperature range

PG-SSO-3-5 modular packaging


Application field

The TLE4986C-XTS-M47 is widely used in the following fields:

New energy vehicle power system ‌ : For measuring camshaft speed and phase to ensure the stability and efficiency of the power system.

Industrial applications ‌ : such as speedometers and other devices that require high-precision speed measurement ‌.
