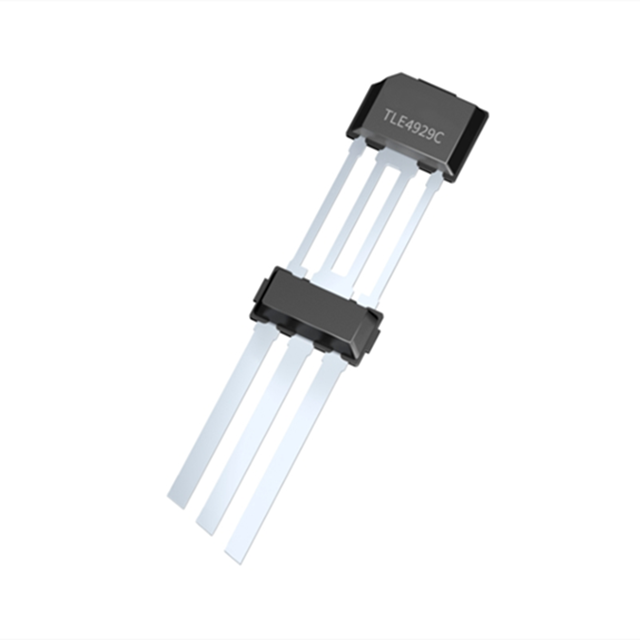

For picture reference, please see the specifications
< >

Commodity Model:TLE4929C-XVA-M38NA

Trade Name:Magnetic Sensors

Brand:INFINEON

Particular Year:25+

Package:PG-SSO-3

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
TLE4929C-XVA-M38NA
Package
PG-SSO-3
Describe
Open-circuit drain Hall effect of crankshaft sensor PG-SSO-3

Product Description

The TLE4929C-XVA-M38NA crankshaft sensor is a fully programmable active Hall sensor used for measuring the speed and position of the gear/pole wheel. This sensor is equipped with two integrated capacitors on the lead frame, which increases the electromagnetic compatibility (EMC) resistivity of the device. Furthermore, the TLE4929C-XVA-M38NA sensor also uses a pull-up resistor R(load) on the output pin to determine the maximum current through the output transistor.


Performance characteristics and application scenarios

The TLE4929C-XVA-M38NA has the following characteristics:

The differential Hall velocity sensor measures the speed and position of the tooth/pole wheel

The switching point in the middle of the teeth can be backward compatible

The robustness of the differential sensing principle to stray magnetic fields

Digital output signals with programmable output protocols, including diagnostic interfaces

High sensitivity, capable of achieving an atmospheric gap

The end of the line is programmable

As a differential camshaft sensor

The operating temperature range of automobiles

Three-pin package in compliance with RoHS standards

Direction detection and stop-start - algorithm

High precision and low jitter


Application scenarios

The TLE4929C-XVA-M38NA sensor is particularly suitable for applications that require high precision and low jitter performance, ‌, including crankshaft applications, camshaft sensors, speed sensors and other industrial and automotive fields.


Associated Products

Model

Brand

Package

Quantity

Describe

TLE4986C-XTS-M47

INFINEON

PG-SSO-3

2000

Camshaft sensor based on Hall effect for SmCo reverse offset magnet

TLE4929C-XVA-M38AA

INFINEON

PG-SSO-3

2000

Open-circuit drain Hall effect of crankshaft sensor PG-SSO-3

TLE4929C-XVA-M18NA

INFINEON

PG-SSO-3

2000

Open-circuit drain Hall effect of crankshaft sensor PG-SSO-3

TLE4929C-XVA-M18AA

INFINEON

PG-SSO-3

2000

Open-circuit drain Hall effect of crankshaft sensor PG-SSO-3

TLE4929C-XAN-M28

INFINEON

PG-SSO-3

2000

Open-circuit drain Hall effect of crankshaft sensor PG-SSO-3

TLE493DP3I8

INFINEON

PG-VSON-8

2000

3D Hall sensor, high precision, low power consumption, wake-up, SPI

TLE4953C

INFINEON

PG-SSO-2

2000

Special current source for differential Hall effect sensors PG-SOS-2-2

TLE4929CXVAM18AA

INFINEON

PG-SSO-3

1500

Open drain Hall effect of crankshaft sensor PG-SO-3-52

TLV49642M

INFINEON

PG-SOT23-3

2000

Board Interface Hall Effect/Magnetic Sensors MAGNETIC SENSOR IC'S

TLV49641M

INFINEON

PG-SOT23-3

2000

Board Interface Hall Effect/Magnetic Sensors POSITION SENS CONS & IND
