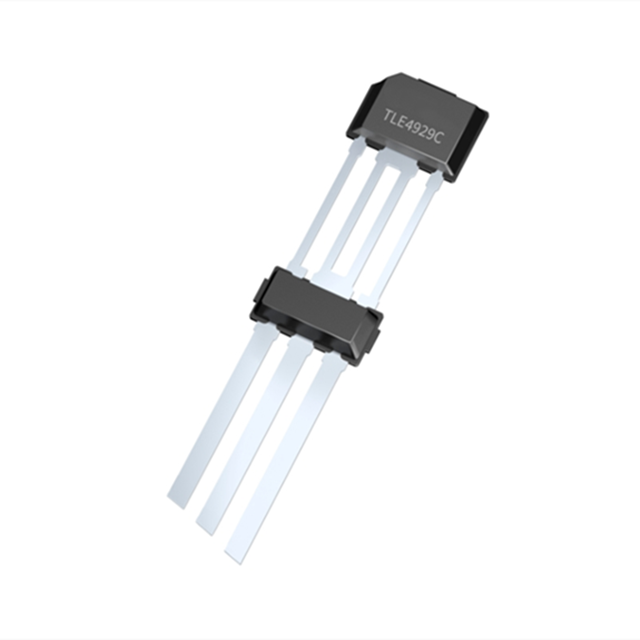

The TLE4929C-XVA-M18NA crankshaft sensor is a fully programmable active Hall sensor that can measure the speed and position of the pin gear/rod wheel. This sensor is equipped with two integrated capacitors on the lead frame, which can enhance the electromagnetic compatibility (EMC) resistivity of the device.

Performance parameters

The main specifications of TLE4929C-XVA-M18NA include:

Technology: Hall Effect

Sensing range: ±120mT

Voltage - Power supply: 4V to 16V

Current - Power supply (maximum value) : 13.4mA

Current - Output (maximum value) : 15mA

Output type: Open circuit drain

Features: Programmable, temperature compensation

Operating temperature: -40°C to 175°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Through hole

Device packaging: PG-SSO-3-52

Application field ‌ : The TLE4929C-XVA-M18NA sensor is widely used in industrial and automotive fields such as crankshaft applications, camshaft sensors, speed sensors, etc. It is particularly suitable for applications that require high precision and low jitter performance ‌.
