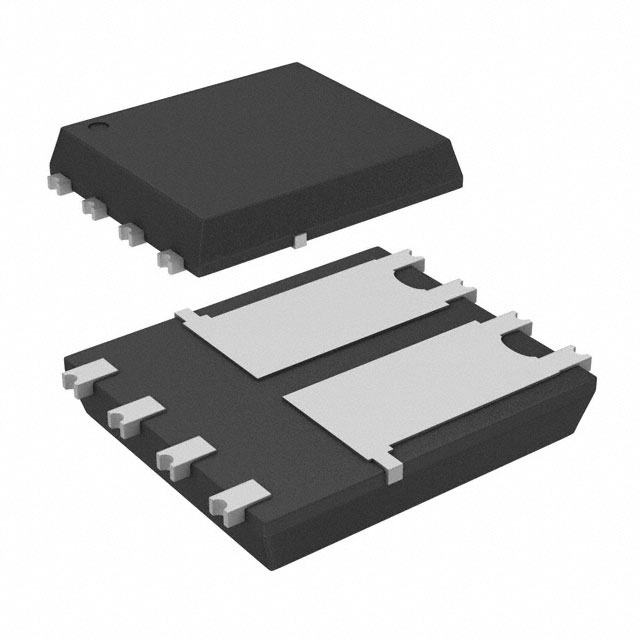

Description: The IPG20N06S4L-11 is a dual N-channel logic level power MOSFET in a PG-TDSON-8 patch package. The device can be used for automated Optical inspection (AOI) and is designed to comply with AEC-101 certification, making it suitable for distributed headlight modules and automotive telematics control units (TCU).

specification

Product category: MOSFET

Package/housing: TDSON-8

Transistor polarity: N-Channel

Number of channels: 2 channels

Vds- drain-source breakdown voltage: 60 V

Id- Continuous drain current: 20 A

Rds On- drain-source on-resistance: 11.2 mOhms

Vgs - grid - source voltage: -16 V, + 16 V

Vgs TH-gate source threshold voltage: 1.7V

Qg- Grid charge: 53 nC

Minimum operating temperature: -55 °C

Maximum operating temperature: + 175°C

Pd- Power dissipation: 65 W

Channel mode: Enhanced

Qualification: AEC-Q101

Configuration: Dual

Height: 1.27 mm

Length: 5.9mm

Transistor type: 2 N-Channel

Width: 5.15mm

Unit weight: 98.290 mg
