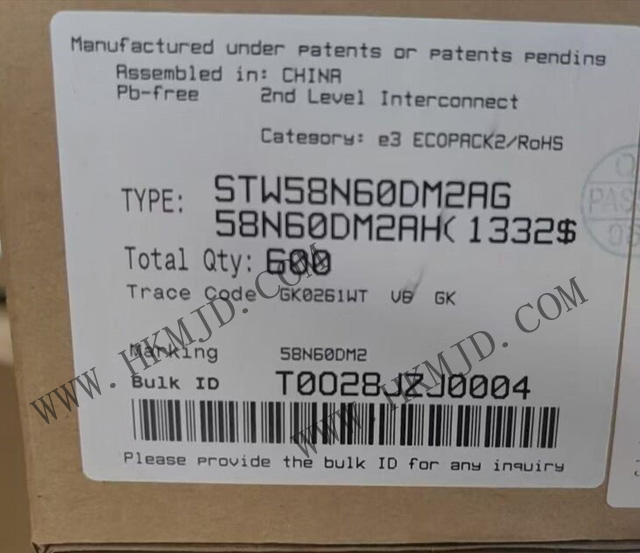

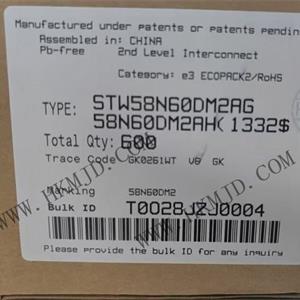

The STW58N60DM2AG is an N-channel power MOSFET from STMicroelectronics belonging to the MDmesh™ DM2 family in a TO-247-3 package for high-voltage, high-current switching applications such as power conversion, motor drives, industrial control and automotive electronics.

STW58N60DM2AG Features

Designed for automotive applications and certified to AEC-Q101

Fast recovery body diode

Extremely low gate charge and input capacitance

Low on-resistance

100% avalanche tested

Extremely high dv/dt strength

Zener-protected

STW58N60DM2AG Product Attributes

Product Category: MOSFET

Technology: Si

Mounting Style. Through Hole

Package / Case: TO-247-3

Transistor Polarity: N-Channel

Number of Channels: 1 Channel

Vds-Drain-Source Breakdown Voltage: 600 V

Id-Continuous Drain Current: 50 A

Rds On-Drain On-Resistance: 60 mOhms

Vgs - Gate-Source Voltage: - 25 V, + 25 V

Vgs th- Gate-source threshold voltage: 4 V

Qg-Gate charge: 90 nC

Minimum operating temperature: - 55 C

Maximum operating temperature: + 150 C

Pd-Power dissipation: 360 W

Channel mode: Enhancement

Qualification: AEC-Q101
