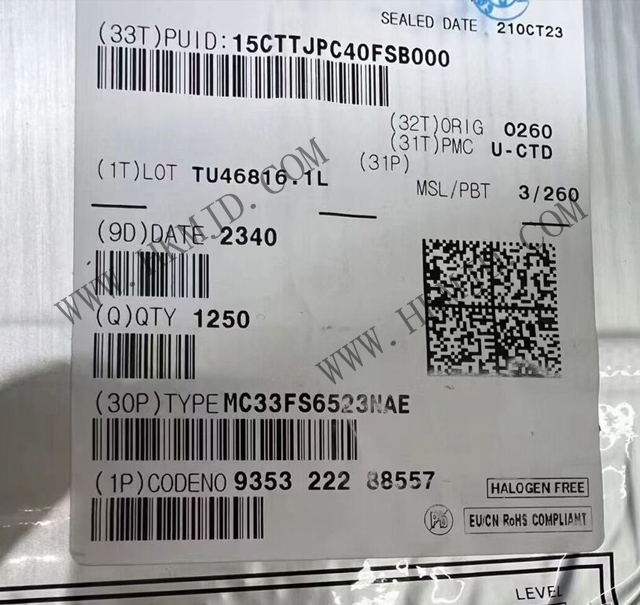

For picture reference, please see the specifications
< >

Commodity Model:MC33FS6523NAE

Trade Name:MC33FS6523NAE

Brand:NXP

Particular Year:24+

Package:HLQFP48

Delivery Date:New and Original

Stock: 1250pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
MC33FS6523NAE
Package
HLQFP48
Describe
System Basis Chip, DCDC 2.2A Vcore FS1B LDT, LQFP48EP

Product Description

The MC33FS6523NAE System Basis Chip (SBC) is a multi-output SMARTMOS power supply integrated circuit (PMIC) featuring a CAN FD (Controller Area Network Flexible Data) transceiver and/or a LIN (Local Interconnect Network) transceiver.The FS65 System Basis Chip (SBC) is capable of powering the MCU with a DC/DC switching regulator, linear regulators, and ultra-low-power power saving modes to optimise energy consumption.


Features:

Advanced functional safety measures for ASIL B/D applications

Serial Peripheral Interface (SPI) for control and diagnostics of MCUs

Integrated CAN FD and LIN physical interfaces compliant with ISO11898-2, -5, LIN2.2, 2.1/J2602-2 standards as well as the latest automotive OEM standards for EMC (Electromagnetic Compatibility) and ESD (Electrostatic Discharge)

A range of integrated safety features, such as monitoring of critical analogue parameters, a fail-stop state machine and an advanced watchdog, reduce software complexity with the use of a dual-core, lock-step MCU

High-temperature tolerant (TA = 150°C, TJ = 175°C), compliant with AECQ100 Class 0 automotive standards


Product Attributes

Product Category: Speciality Power Management (PMIC)

Family: FS6500

Type: Voltage Regulator, Multiple Outputs

Mounting Style: SMD/SMT

Package / Case: LQFP-48

Output Current: 2.2 A

Input Voltage Range: 2.7 V

Output voltage range: 1 V to 5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Application: Power Train

Input voltage (max.): 2.7 V

Input voltage (min.): 2.7 V

Maximum output voltage: 5 V

Operating supply voltage: 2.7 V to 40 V

Product: Safety Power System

Product Type: Power Management Specialised - PMIC

Factory Package Quantity: 250

Sub Category: PMIC - Power Management ICs

Unit Weight: 187.500 mg
