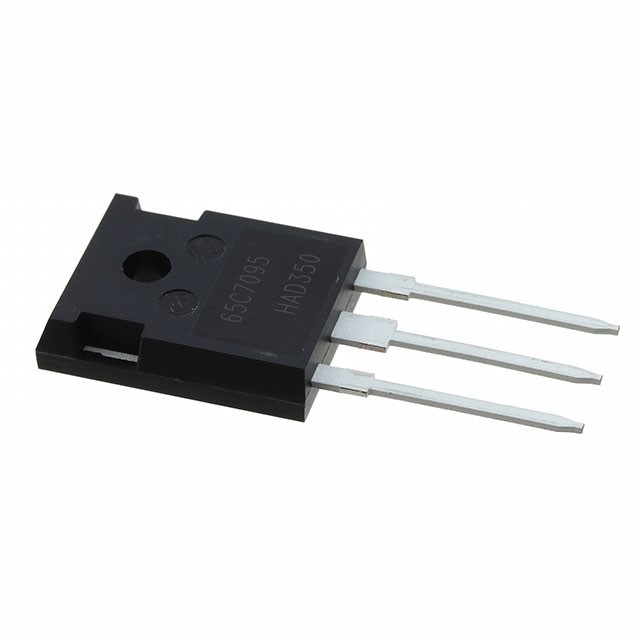

Trade Name:IKW20N60TFKSA1
Brand:INFINEON
Particular Year:24+
Package:TO-247-3
Delivery Date:New and Original
Stock: 2000pcs
The IKW20N60TFKSA1 is a 600 V, 20 A hard-switching TRENCHSTOP™ third-generation IGBT co-packaged with a fully rated continuity diode in a TO-247 package, combining trench gate and field termination concepts to significantly improve device static and dynamic performance.The IGBT is combined with a soft recovery emitter control diode to further reduce turn-on losses. Switching and conduction losses are optimised for maximum efficiency.
Specification
Product Category: IGBT Transistors
Technology: Si
Package / Case: TO-247-3
Mounting Style: Through Hole
Configuration: Single
Maximum collector-emitter voltage VCEO: 600 V
Collector-emitter saturation voltage: 1.5 V
Gate/Emitter Maximum Voltage: - 20 V, 20 V
Continuous collector current at 25 C: 41 A
Pd-power dissipation: 166 W
Minimum operating temperature: - 40 C
Maximum operating temperature: + 175 C
Gate-emitter leakage current: 100 nA
Trade Name: TRENCHSTOP
Feature Description
Lowest VCEsat voltage rise for reduced conduction losses
Low switching losses
Positive temperature coefficient of VCEsat for easy parallel switching capability
Very soft, fast recovery anti-parallel emitter control diodes
High robustness and temperature stability
Low EMI emissions
Low gate charge
Very compact parameter distribution
