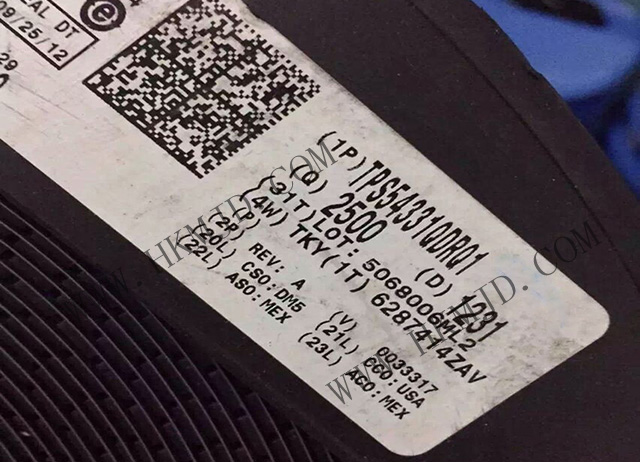

The TPS54331QDRQ1 is a 28 V, 3-A non-synchronous buck converter with an integrated low RDS(on) high-side MOSFET that automatically activates the pulse-skipping Eco-mode™ function for improved efficiency at light loads. In addition, a 1 µA shutdown supply current allows the device to be used in battery-powered applications. Current-mode control with internal slope compensation simplifies external compensation calculations, reduces component count, and allows the use of ceramic output capacitors.

Product Features

Function: Tank

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of outputs: 1

Voltage - input (min): 3,5 В

Voltage - input (max.): 28 В

Voltage - output (min/fixed): 0,8 В

Voltage - output (max.): 25 В

Current - output: 3A

Frequency - switching: 570 kHz

Synchronous rectifier: none

Operating temperature: -40°C ~ 125°C (TA)

Rating: Automotive Grade

Certification: AEC-Q100

Mounting Type: Surface Mount

Package/Case: 8-SOIC (0.154", 3.90 mm wide)

Supplier Device Package: 8-SOIC

Applications

● Consumer applications such as set-top boxes, CPE devices, LCD monitors, peripherals, and battery chargers

● Industrial and automotive audio power supplies

● 5V, 12V, and 24V distributed power systems
