The L99H92Q5 drives four external N-channel MOSFET transistors in single H-bridge or dual independent half-bridge configurations for DC motor control in automotive applications. Two freely configurable current-sense amplifiers are integrated. The device has a low-power mode (standby mode) with a current consumption of less than 5 µA. Programmable gate drive currents minimise EMI. Each gate driver can independently monitor its external MOSFET drain-source voltage. Programmable cross-current protection time prevents simultaneous activation of the high-voltage and low-voltage sides of each half-bridge.

Attributes

Drive Configuration: Half Bridge

Channel Type: Synchronous

Number of drivers: 4

Gate Type: N-Channel MOSFETs

Supply Voltage: 4.51V ~ 28V

Input Type: Non-Inverting

Class: Automotive

Certification: AEC-Q100

Mounting Type: Surface Mount, Wetted Side

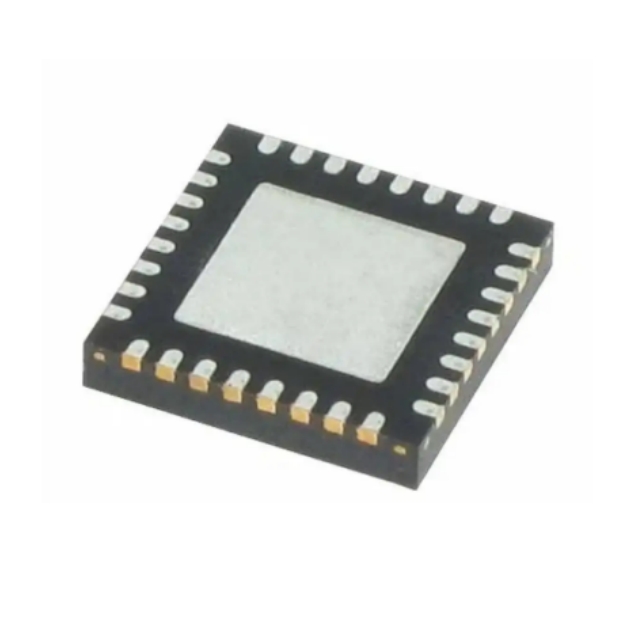

Package/case: 32-QFN with open area

Delivery incl.: 32-QFN-EP (5x5)

Applications

● Sunroofs

● Electric boot liftgate

● Sliding doors

● Window lifters, seat belt pretensioners, etc.
