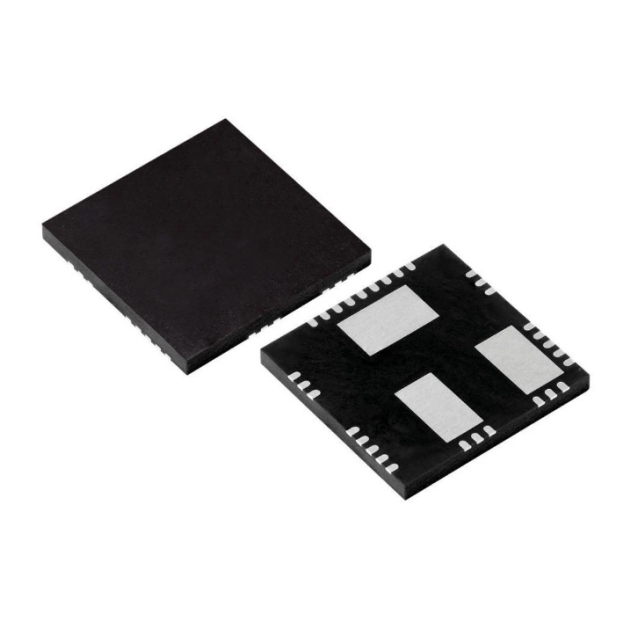

The MASTERGAN1LTR GaN half-bridge high voltage driver features a high power density supply with an integrated gate driver and two enhancement mode GaN transistors in a half-bridge configuration. The integrated power shunt has a 150mΩ RDS(ON) and 650V drain-source breakdown voltage. An integrated bootstrap diode quickly powers the high-side of the embedded gate driver.

Product Attributes

Output Configuration: Half Bridge

Application: General Purpose

Interface: Logic

Load Type: Inductive, Capacitive, Resistive

Technology: MOSFET (Metal Oxide)

On-resistance (typical): 150 milliohms

Current - Output/Channel: 10A

Current - Peak Output: 17A

Voltage - Supply: 4.75V ~ 9.5V

Voltage - Load: 600V (Max)

Operating Temperature: -40°C ~ 150°C (TJ)

Features: Bootstrap Circuitry

Fail-Safe: Over Temperature, UVLO

Mounting Type: Surface Mount

Package/Housing: 31-VQFN Exposed Pad

Supplier Device Package: 31-QFN (9x9)

Applications

● Switch-mode power supplies

● High voltage PFC, DC-DC and DC-AC converters

● Chargers and adapters

● Uninterruptible power supply (UPS) systems

● Solar power generation
