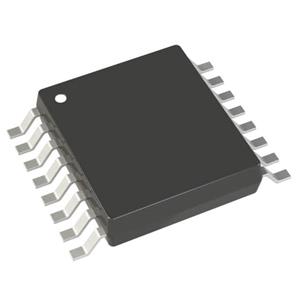

The AD5684BRUZ, part of the nanoDAC+™ family, is a low-power, four-channel, 12-bit buffered voltage output DAC. The device has a built-in gain selection pin with a full scale output of 0V to VREF (gain = 1) or 0V to 2VREF (gain = 2). Powered by a single supply from 2.7V to 5.5V, it is designed to ensure monotonicity and has a gain error of less than 0.1% FSR and an offset error of 1.5mV.

specification

Number of digits: 12

Number of digital to analog converters: 4

Setup time: 7µs

Output type: voltage-buffer

Differential output: None

Data interface: SPI

Reference type: external

Voltage - power supply, analog: 2.7V ~ 5.5V

Voltage - power supply, number: 1.8V ~ 5.5V

INL/DNL (LSB) : ±0.12, ±1 (Max)

Architecture: Resistor string DAC

Operating temperature: -40°C ~ 105°C

Package/housing: 16-TSSOP (0.173", 4.40mm wide)

Supplier device package: 16-TSSOP

Mounting type: Surface mount type

Basic product number: AD5684
