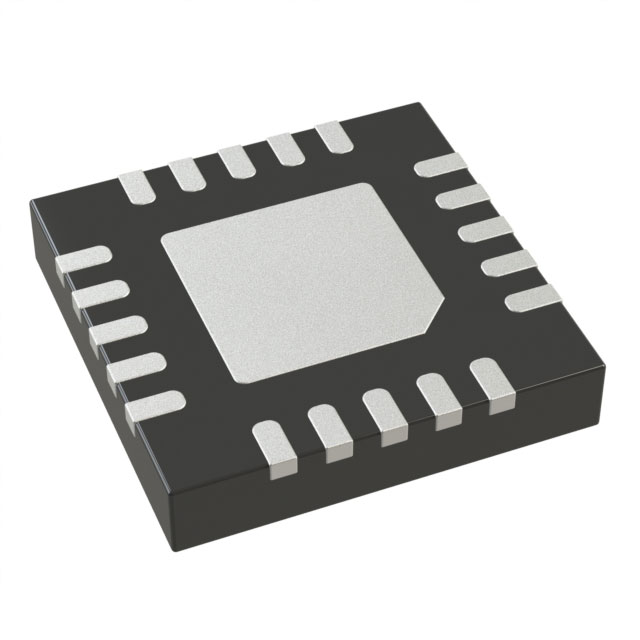

The AD5676RBCPZ is a low-power, 8-channel, 16-bit buffer voltage output digital-to-analog converter (DAC). The AD5676R comes in a 20-pin LFCSP package with a power-on reset circuit and an RSTSEL pin that ensures the DAC output is powered up to zero or intermediate levels until a valid write operation is performed. The AD5676R has a relevant off mode in which the typical power consumption can be reduced to 1 µA.

specification

Number of digits: 16

Number of digital to analog converters: 8

Setup time: 8µs

Output type: voltage-buffer

Differential output: None

Data interface: SPI, DSP

Reference type: Internal

Voltage - power supply, analog: 2.7V ~ 5.5V

Voltage - power supply, number: 1.8V ~ 5.5V

INL/DNL (LSB) : ±1.8, ±0.7

Architecture: Resistor string DAC

Operating temperature: -40°C ~ 125°C

Package/Housing: 20-WFQFN bare pad, CSP

Supplier Package: 20-LFCSP (4x4)

Mounting type: Surface mount type

Basic product number: AD5676
