Trade Name:LM25184QNGURQ1
Brand:TI
Particular Year:23+

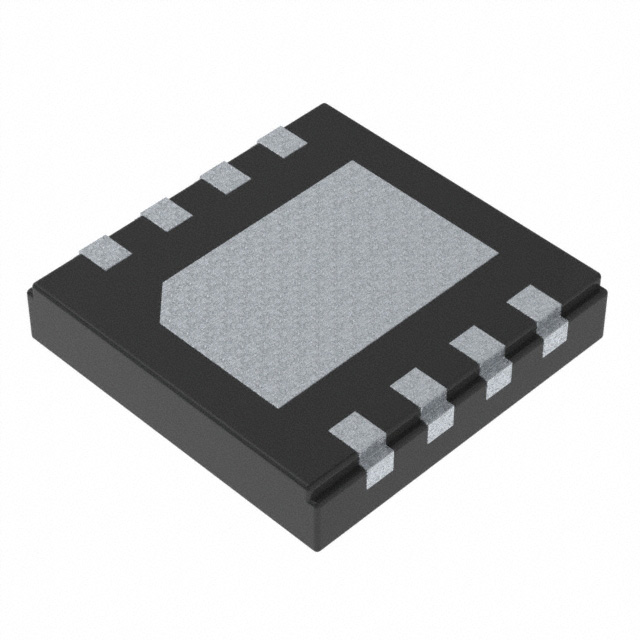

Package:8-WDFN
Delivery Date:New and Original
Stock: 1000pcs
The LM25184QNGURQ1 is a primary-side regulation (PSR) flyback converter with high efficiency over a wide input voltage range of 4.5V to 42V that samples an isolated output voltage via primary-side flyback. The high level of integration enables simple and reliable high-density designs where only one component passes through the isolation layer. Boundary Conductive Mode (BCM) switching enables a compact magnetic solution with better than ±1.5% load and line regulation. An integrated 65V power MOSFET provides up to 15W of output power and increased margin for line transients.
Product Attributes
Function: Boost/Buck
Output Configuration: Positive
Topology: Flyback
Output Type: Fixed
Number of Outputs: 1
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 42V
Voltage - Output (Min/Fixed): 12V
Current - Output: 4.1A
Frequency - Switching: 12kHz ~ 350kHz
Synchronous Rectifier: None
Operating Temperature: -40°C ~ 150°C (TJ)
Rating: Automotive Grade
Qualification: AEC-Q100
Mounting Type: Surface Mount, Wettable Flanks
Package/Housing: 8-WDFN Exposed Pad
Supplier Device Package: 8-WSON (4x4)
Applications
● Motor drivers (IGBT and SiC gate driver power supplies)
● Isolated field emitters and field actuators
● Isolated bias power rails
