The LM5169PDDAR synchronous buck converter is designed to regulate over a wide input voltage range to minimise the need for external surge suppression components. 50ns minimum controllable on-time facilitates a large step-down conversion ratio and supports direct step-down conversions from a nominal 48V input to a low voltage rail, reducing system complexity and solution cost. The ability to operate at near 100% duty cycle as needed during input voltage dips down to 6V is ideal for industrial and high-cell-count battery pack applications with a wide input supply voltage range.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 6V

Voltage - Input (Max): 120V

Voltage - Output (Min/Fixed): 1.2V

Voltage - Output (Max): 120V

Current - Output: 650mA

Frequency - Switch: 100kHz ~ 1MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

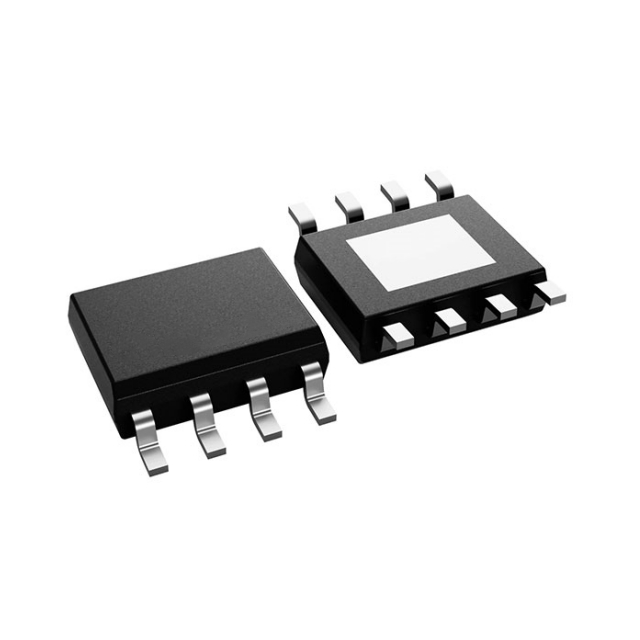

Package/Housing: 8-PowerSOIC (0.154", 3.90mm Width)

Supplier Device Package: 8-SO-PowerPad

Applications

● Communications - Brick Power Modules

● Industrial Battery Packs (≥ 10S)

● Battery Packs - E-Bikes/E-Scooters/LEVs
