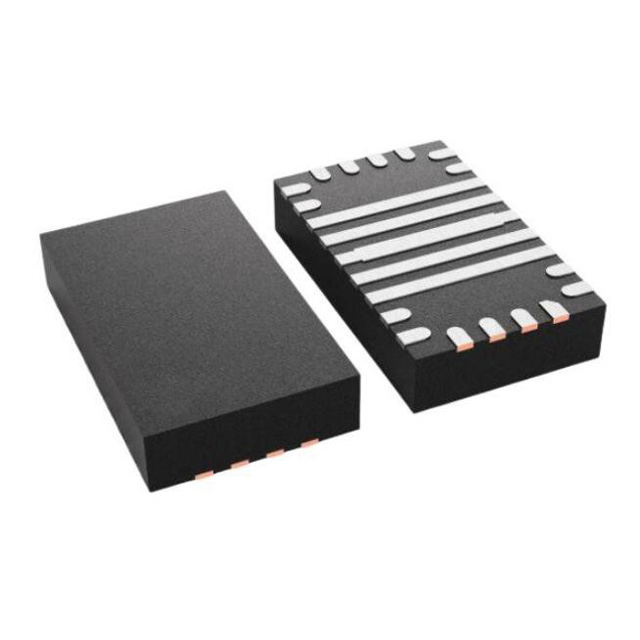

For picture reference, please see the specifications
< >

Commodity Model:TPS55289RYQR

Trade Name:TPS55289RYQR

Data Manual:TPS55289RYQR.pdf

Brand:TI

Particular Year:23+

Package:VQFN-21

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TPS55289RYQR
Package
VQFN-21
Describe
Buck-Boost Switching Regulator IC Positive Adjustable 0.8V 1 Output 6.35A (Switch) 21-PowerVFQFN

Product Description

TPS55289RYQR - 30V, 8A Buck-Boost Converter with I2C Interface


Product Description

TPS55289RYQR is a synchronous buck-boost converter that is optimized for converting battery voltage or adapter voltage into power supply rails. The TPS55289 integrates four MOSFET switches, providing a compact solution for USB power delivery (USB PD) application.


Product Features

Programmable power supply (PPS) support for USB power delivery (USB PD)

– 3.0V to 30V wide input voltage range

– 0.8V to 22V with 10mV step programmable output voltage range

– ±1% reference voltage accuracy

– Adjustable output voltage compensation for voltage droop over the cable

– Programmable output current limit up to 6.35A with 50mA step

– ±5% accurate output current monitoring

– I2C interface

High efficiency over entire load range

– 96% efficiency at VIN = 12V, VOUT = 20V, and IOUT = 3A

– Programmable PFM and FPWM mode at light load


Applications

Wireless charger

USB PD

Docking station

Industrial PC

Power bank

Monitor


Associated Products

Model

Brand

Package

Quantity

Describe

LT3471EDD

ADI

DFN-10

5000

1.3A, 1.2MHz, Dual Boost/Negative Output Converter, DFN-10

LM22674MRE-5.0

TI

HSOIC-8

2250

Buck Switching Regulator IC Positive Fixed 5V 1 Output 500mA 8-PowerSOIC (0.154", 3.90mm wide)

NCP3232NMNTXG

ON

QFN-40

5000

Step-down Switching Regulator IC Positive Adjustable 0.6V 1 Output 15A 40-VFQFN Bare Pad

LT1976BEFE

ADI

TSSOP-16

5000

High-voltage, 1.5A, 200kHz buck switch mode regulator with 100μA quiescent current

LT1946AEMS8E

ADI

MSOP-8

15000

Switching Regulator 2.7MHz Boost DC/DC Conv w/ 1.5A Switch

TPS62260DRVR

TI

WSON-6

12000

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 600mA 6-WDFN Unpopulated Pad

MAX20830TAFE

Maxim

FC2QFN-16

5000

30A, 2MHz, 2.7V to 16V Integrated Step-Down Switching Regulator with PMBus

MAX20075DATCE/V

Maxim

TDFN-12

2000

Step-Down Switching Regulator IC Positive Adjustable (Fixed) 1V (3.3V) 1 Output 600mA

MAX20075DATCD/VY

Maxim

TDFN-12

1000

Step-Down Switching Regulator IC Positive Adjustable (Fixed) 3V (3.6V) 1 Output 600mA 12-WFDFN Exposed Pad

MAX20075DATCC/VY

Maxim

12-TDFN

1000

Buck Switching Regulator IC Positive Adjustable 1V 1 Output 600mA 12-WFDFN Exposed Pad
