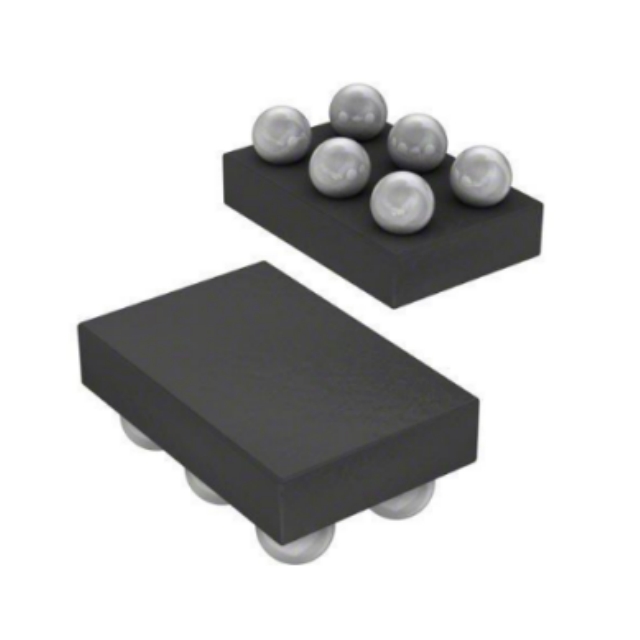

The FPF2188UCX is an OVP with an integrated low on-resistance single-channel switch.The device contains an N-MOSFET that operates over an input voltage range of 2.8V to 23V and supports a maximum continuous current of 4A. When the input voltage exceeds the overvoltage threshold, the internal FET immediately shuts down to prevent damage to protected downstream components. Available in a small 6-bump WLCSP package and operates over the -40°C to +85°C atmospheric temperature range.

Functions

● Overvoltage protection up to +28 V

● Internal low RDS (conduction) NMOS transistor: 25 m typical

● Programmable overvoltage lockout (OVLO)

● Externally adjustable via OVLO pin

● Device active low enable pin (OVLO)

● Ultra-fast OVLO response time: 40 ns typical

● Short-circuit protection and auto-restart

● Over-temperature protection (thermal shutdown)

● Robust ESD performance

● 2 kV Human Body Model (HBM)

● 1 kV Charging Device Model (CDM)

● VIN tolerates 35 V residual voltage during surge events

● These devices are lead-free, halogen-free/brominated flame retardant-free, and RoHS compliant.

Applications

● Mobile phones

● Pocket PCs

● Global Positioning System
