Trade Name:Image sensor
Brand:ON
Particular Year:20+
Package:mPLCC48
Delivery Date:New and original
Stock: 5000pcs

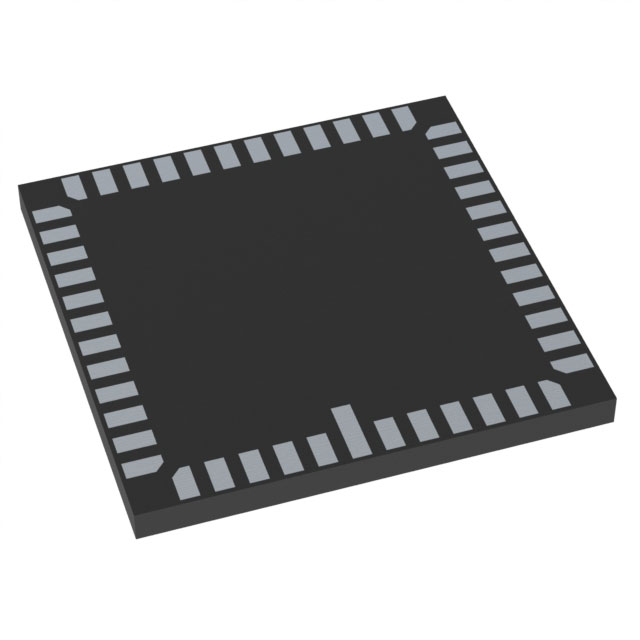

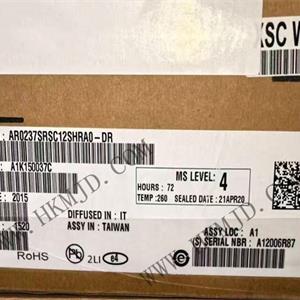

The AR0237SRSC12SHRA0-DR is a 1/2.7-inch CMOS digital image sensor with an effective pixel array of 1928 (H) x1088 (V). The AR0237SRSC12SHRA0-DR supports both RGB and RGBIR versions. It captures images in linear or high dynamic range modes through roller shutter readings and includes complex camera functions such as intra-pixel merging, windowing, and video and single-frame modes.
The AR0237SRSC12SHRA0-DR is specifically designed for low-light and high dynamic range scene performance and can be programmed via a simple dual-wire serial interface. The AR0237 can generate extremely clear and sharp digital images. Its ability to capture continuous video and single frames makes it a perfect choice for a wide range of applications, including surveillance and FHD video, access control, mobile payment, and in-cabin monitoring systems.
Its main features include
DR-PIX™ technology with dual conversion gain
Full HD supports video performance up to 1080p at 60 fps
Linear or high dynamic range capture
On-chip phase-locked loop (PLL) oscillator
Support line interlaced T1/T2 readout to achieve HDR processing in the ISP chip
Integrate location-based color and lens shadow correction
Precise frame rate control can be achieved from the mode
Support for stereo /3D cameras
Statistical engine
Four-channel Serial High-Speed Pixel Interface (HiSPi)
Automatic black level calibration
High-speed configurable context switching
Temperature sensor
RGB and 4x4 RGBIR
Application field
Video surveillance
1080p60 (surveillance) video application
High dynamic range imaging
Mechanical 1080p camera without shutter speed
Access control camera
In-vehicle surveillance camera
Face Payment System
Model
Brand
Package
Quantity
Describe
ON
IBGA-89
2000
Hayabusa CMOS Image Sensor SOC, 1.3 MP, 1/4", RGB, Rolling Shutter
ON
IBGA-89
2500
Hayabusa CMOS Image Sensor SOC, 1.3 MP, 1/4", RGB, Rolling Shutter
ON
ODCSP-83
2000
1/2.6-inch 2.3Mp CMOS digital image sensor with global shutter
ON
IBGA-89
2500
Hayabusa CMOS Image Sensor SOC, 1.3 MP, 1/4", RGB, Rolling Shutter
