The PCA9420AUKZ power management IC (PMIC) is a highly integrated PMIC designed to provide a full power management solution for low power applications. It is intended to provide a power management solution for low-power microcontroller applications or other similar applications powered by lithium-ion batteries. The device includes a linear battery charger that enables charging currents up to 315mA with I2C programmable constant current (CC) and constant voltage (CV) values. The device also integrates two buck converters, two LDOs with programmable output voltages.

Features

Optimised for low power applications

Built-in "mode" configuration to accommodate fast mode switching to support different MCU operating modes

Linear battery charger for charging a single lithium-ion battery

Thermal protection

Two step-down DC/DC converters

Two LDOs

1MHz I2C bus slave interface

Two package options available

Ambient temperature range: -40°C to +85°C

Product Attributes

Current - Supply: 4.5µA

Voltage - Supply: 3.3V ~ 5.5V

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

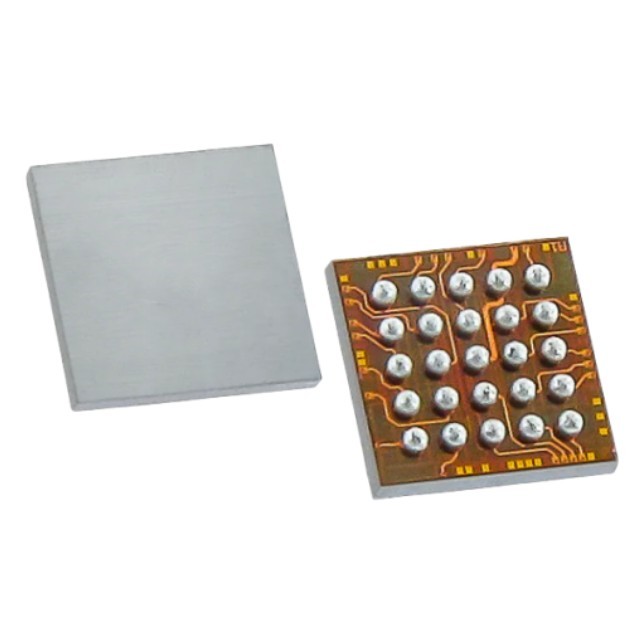

Package/Housing: 25-UFBGA, WLCSP

Supplier Device Package: 25-WLCSP (2.09x2.09)

Applications

Consumer electronics

Smart watches

Wireless gaming headsets

Industrial

Hearing Devices

Hearing Aids

Wearable Wireless Healthcare Patches
