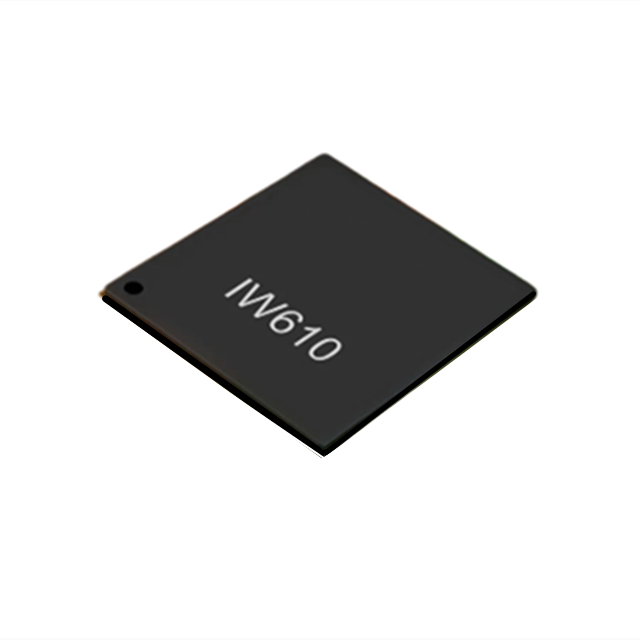

The IW610BUK tri-band radio module is designed to enhance the connectivity and efficiency of various IoT applications. This module integrates Wi-Fi 6, BLUETOOTH® Low Energy (LE) 5.4 and 802.15.4 wireless communication technologies into a compact solution, providing powerful wireless communication capabilities. The Wi-Fi 6 subsystem has higher network efficiency, lower latency and longer communication distance, while Bluetooth Low Energy Radio supports high-speed data rate and long-distance communication. In addition, the 802.15.4 wireless function supports Thread mesh networks, making the IW610BUK an ideal choice for Matter applications.

Main features

Wi-Fi connection

1x1 dual-band 2.4GHz/5GHz 802.11a /b/g/n/ax

256 QAM, 20MHz bandwidth, and peak throughput of 114.7Mbps

The output power of Wi-Fi Tx is up to +23dBm

Wi-Fi 6 Extended Coverage (ER), Dual Carrier Modulation (DCM), Target Wait Time (TWT)

Low-power Wi-Fi idle, standby and sleep modes

WPA2/WPA3 security

Support Matter over Wi-Fi

Single antenna, dual antenna, with diversity function.

SDIO or USB host interface

BLE connection

It can be switched to BLE/802.15.4 operation

Built-in PA/LNA/ switch, with a transmission output up to +15dBm

2Mbps high-speed data transmission, remote, and broadcast expansion

UART or USB

802.15.4

A MAC that complies with the IEEE802.15.4-2015 standard

802.15.4 supports Matter over Thread

SPI host interface

Typical applications

The IW610BUK module combines various advanced features and security, making it highly suitable for modern Internet of Things (iot) solutions.
