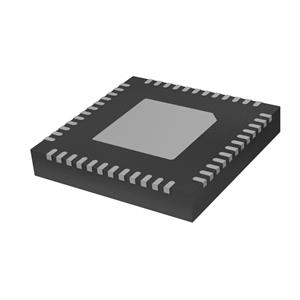

The MC34VR5100A0EP is a high-performance multi-output DC-DC regulator designed to power single or dual core processors such as the LS1012A and LS1024A. It contains three buck regulators, six LDOs, and one boost regulator to provide a complete power management solution for network-attached storage, battery-powered mobile NAS, IoT gateways, and home and factory automation systems.

Key Features

3 adjustable high-efficiency buck regulators: 3.8A, 1.25A, 1.5A

Selectable modes: PWM, PFM, APS

5.0V, 600 mA boost regulator supporting PFM or Auto mode

6 Adjustable General Purpose Linear Regulators

Input voltage range: 2.8V to 4.5V

OTP (One Time Programming) memory for device configuration

Programmable start-up sequence and timing

Selectable output voltage, frequency, soft start

I2C interface and input control

Always-on RTC power supply and coin cell charger

DDR reference voltage

-40°C to +125°C (node operating temperature)

Supports LS1024A and LX2160 MCUs

Output current: 2.75A
