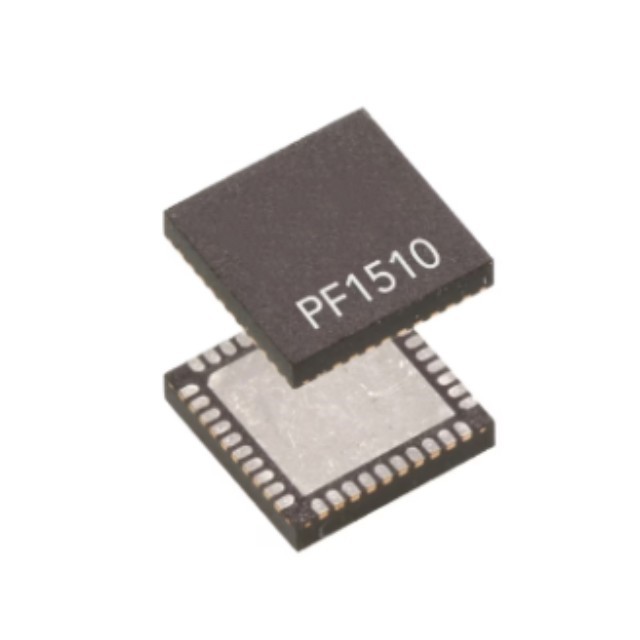

The MC32PF1510A2EP is a power management IC (PMIC) designed for i.MX processors on low-power portable, smart wearable and Internet of Things (IoT) applications.

It is also capable of providing a complete power solution for i.MX 7ULP, i.MX 6SL, 6UL, 6ULL and 6SX processors.

Features

Input voltage VIN can be accessed via 5V bus, USB or AC adapter (4.1V to 6.0V)

Linear front-end input LDO (1500mA input limit)

Up to 6.5V input operating range

Ambient temperature range: -40°C to 105°C

VIN withstands transient and DC inputs from 0V to +22V

3 buck converters

3 LDO regulators

LDO/Switching Power Supplies

RTC power supply VSNVS 3.0V, 2.0mA

Coin Cell Charger

DDR memory reference voltage, VREFDDR, 0.5 to 0.9V, 10mA

OTP (one-time programming) memory for device configuration

User-programmable start-up sequence, timing, soft-start and shutdown sequence

Programmable regulator output voltage

I2C interface and input control

User programmable standby, sleep and shutdown (REGS_DISABLE) modes

Output current: 1 A

Supports i.MX6UL, i.MX6UL/6ULL with DDR3, i.MX6UL/6ULL with DDR3L, i.MX6ULL, i.MX6UL with LPDDR2, i.MX7ULP, and i.MX7ULP MCUs with LPDDR3

Product Attributes

Applications: Embedded Systems, Low Power IoT, Mobile/Wearable Devices

Voltage - Supply: 4.1V ~ 6V

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Shell: 40-VFQFN Exposed Pad

Supplier Device Package: 40-HVQFN (5x5)
