Service Telephone:86-755-83294757

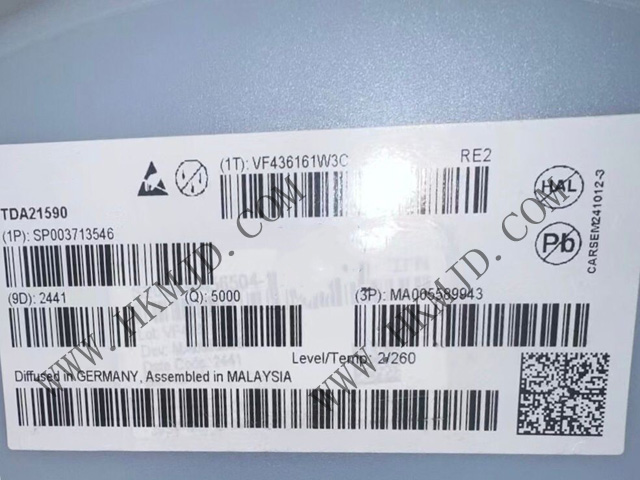

Trade Name:TDA21590
Data Manual:TDA21590.pdf
Brand:INFINEON
Particular Year:23+
Package:QFN-39
Delivery Date:New original
Stock: 1000pcs
The TDA21590 is a high efficiency OptiMOS™ 90A power stage with integrated internal current detection. The device consists of a low static current synchronous buck gate driver IC packaged with control and sync MOSFETs and an active diode structure to achieve a Schottky-like low VDS with very little reverse recovery charge. The package is optimized for PCB layout, heat transfer, driver /MOSFET control timing, and minimizes switch node ringing while following layout guidelines.
Feature description
Integrated driver, active diode, control MOSFET Q1 and synchronous MOSFET Q2
On-chip MOSFET current detection (+/-3%Imon accuracy range)
The input voltage (VIN) ranges from 4.25 V to 16 V
Output current capacity 90A (120A OCP)
Enhanced fault reporting and identification
Overheat protection and thermal shut-off
Bootstrap capacitor replenishes automatically
Compatible with 3.3V three-state PWM input
DEEP SLEEP mode, with EN= low level (32μA typical value) to achieve power saving effect
Small 5 mm x 6 mm x 0.9 mm PQFN package
Applications
High frequency, small size DC-DC converter
Voltage regulator for CPU, GPU and DDR memory arrays
Telecommunications control and non-control
