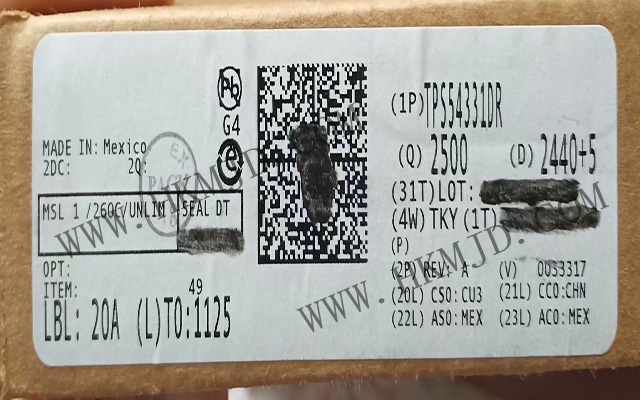

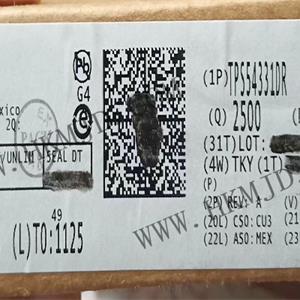

Trade Name:DC-DC Converter
Brand:TI
Particular Year:24+
Package:SOIC-8
Delivery Date:New and Original
Stock: 50000pcs
The TPS54331DR device is a 28V, 3A asynchronous buck converter with an integrated high-side MOSFET featuring low R DS(on). To improve efficiency under light load conditions, the pulse-skipping Eco-mode feature is automatically activated. Additionally, the 1µA shutdown supply current makes this device suitable for battery-powered applications. Current-mode control with internal slope compensation simplifies external compensation calculations and reduces component count while allowing the use of ceramic output capacitors. A resistor divider programs the hysteresis for input under-voltage lockout. Overvoltage transient protection circuits limit voltage overshoot during startup and transient conditions. Cycle-by-cycle current limiting, frequency foldback, and thermal shutdown features protect the device and load under overload conditions. The TPS54331DR device is available in an 8-pin SOIC package and an 8-pin SO PowerPAD integrated circuit package, both of which are internally optimised to improve thermal performance.
TPS54331DR Features
• 3.5V to 28V input voltage range
• Adjustable output voltage as low as 0.8V
• Integrated 80mΩ high-side MOSFET supporting up to 3A continuous output current
• Pulse-skipping Eco-mode for high efficiency under light load conditions
• 570kHz fixed switching frequency
• 1μA shutdown quiescent current (typical)
• Adjustable slow-start limit to restrict inrush current
• Programmable UVLO threshold
• Overvoltage transient protection
• Cycle-by-cycle current limiting, frequency foldback, and thermal shutdown protection
• Available in an easy-to-use SOIC8 package or thermally enhanced SOIC8 PowerPAD™ integrated circuit package
• Use the TPS54331 and leverage WEBENCH® Power Designer to create custom design solutions
• Use the TPS62933 to achieve a 30V input voltage converter with higher frequency, lower IQ, and improved EMI
TPS54331DR Applications
• Consumer applications such as set-top boxes, CPE devices, LCD displays, peripherals, and battery chargers
• Industrial and automotive audio power supplies
• 5V, 12V, and 24V distributed power systems
