Trade Name:MAX17690ATE/V
Data Manual:MAX17690ATE/V.pdf
Brand:Maxim
Particular Year:23+

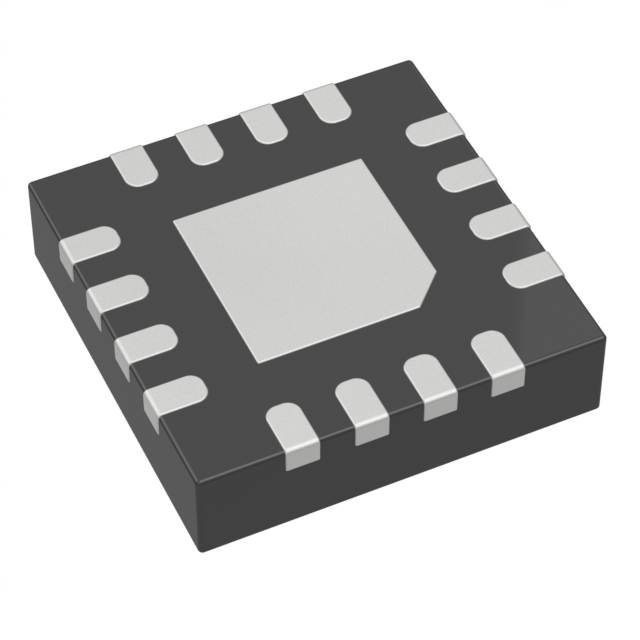

Package:TQFN-16
Delivery Date:New and Original
Stock: 4000pcs
The MAX17690ATE/V is a peak current mode, fixed switching frequency controller specifically designed for isolated flyback structures operating in discontinuous conduction mode (DCM). The device directly senses the isolated output voltage of the primary-side flyback waveform during primary-side switch-off, eliminating the need for auxiliary windings or optocouplers to regulate the output voltage.
The MAX17690ATE/V provides temperature compensation to compensate for the output diode forward voltage drop. Featuring reliable hiccup protection and thermal protection mechanisms, it is available in a space-saving 16-pin 3mm x 3mm TQFN package and operates over the -40°C to 125°C temperature range.
Features
4.5V to 60V input voltage range
Drives flyback signal through isolated gate without optocoupler or third winding
2A/4A maximum source/sink gate drive current
50kHz to 250kHz settable switching frequency
Input EN/UVLO function
Input overvoltage protection
Programmable soft start
Hiccup mode short circuit protection
Thermal shutdown protection
-40°C to 125°C operating temperature range
Space-saving 16-pin 3 x 3 TQFN package
Applications
Industrial and telecom applications
Isolated flyback converters
PLC I/O modules
Wide range DC input isolated power supplies
